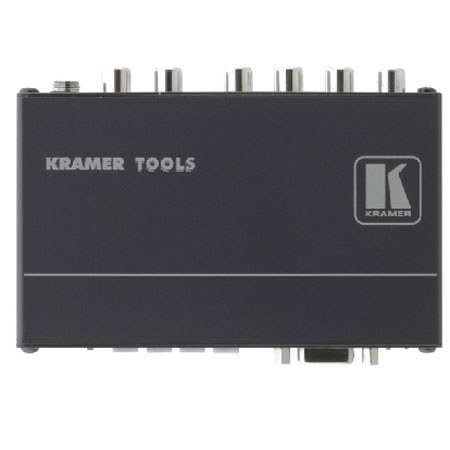

Kramer Electronics 6502 4x1:2 S/PDIF Switcher
Kramer Electronics

Kramer Electronics 6502 4x1:2 S/PDIF Switcher, 32kHz to 192kHz Sampling Rate

SKU: VDKR6502 MFR: 6502
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer Electronics 6502 4x1:2 S/PDIF Switcher
  • Power Supply (5V/2A)
  • Mounting Brackets
  • IR Remote Control Transmitter
  • Kramer Electronics Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$316.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The 6502 4x1:2 S/PDIF Switcher from Kramer Electronics is a switcher designed for use with S/PDIF digital audio signals. The unit takes any one of four inputs, provides reclocking and equalization and distributes the signal to two identical outputs. The unit can be controlled via its front panel, RS-232 connectivity, or IR remote control. It belongs to the Compact DigiTOOLS family of products and up to (3) units can be mounted side by side in 1U of rack space using the optional RK-3T rack adapter.

What's Included With This Item

  • Kramer Electronics 6502 4x1:2 S/PDIF Switcher
  • Power Supply (5V/2A)
  • Mounting Brackets
  • IR Remote Control Transmitter
  • Kramer Electronics Warranty

Key Features

  • Sampling rates or 32kHz to 192kHz are supported
  • This unit features Kramer Equalization & re-Klocking Technology, which rebuilds the digital signal to travel longer distances
  • The unit can be controlled via the front panel, RS-232 and IR
  • This unit belongs to the Compact DigiTOOLS family of products and up to (3) units can be mounted side by side in 1U of rack space using the optional RK-3T rack adapter

Technical Specs

Inputs 4 digital audio S/PDIF on RCA connectors
Outputs 2 digital audio S/PDIF on RCA connectors
Sampling Rate 32kHz to 192kHz.
Standards CP1201, IEC 60958, AES3ID and S/PDIF
Power Source 5V DC, 140mA.
Dimensions (H x W x D) 0.96 x 4.72 x 2.74" (2.44 x 12 x 6.95cm)
Weight 0.66 lbs (0.3kg)
