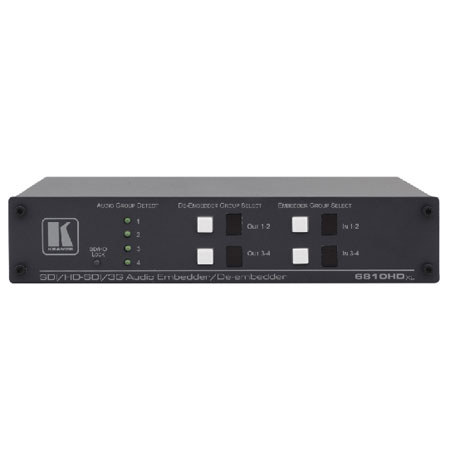

Kramer Electronics 6810HDXL Embedder/De-embedder

Kramer Electronics 6810HDXL 3G HD-SDI AES Audio Embedder and De-embedder, 3Gbps Data Rate

SKU: VDKR6810HDXL
Be the first to review this item

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Kramer Electronics 6810HDXL Specifications

Related Articles & Videos

About Kramer Electronics 6810HDXL

The Kramer Electronics 3G HD-SDI AES Audio Embedder and De-embedder is a broadcast-quality unit designed for video signals up to 3G HD-SDI and embeds and de-embeds 4 AES/3id audio streams with a maximum data rate of 3 Gbps. The audio embedder / de-embedder is useful for broadcast and production studios and is applicable for digital / analog AV authoring.

Kramer's reKlocking and equalization technology rebuilds the digital signals to travel longer distances. The group select feature will help you to select the group containing the channel pair to embed or de-embed. The AES Audio Embedder and De-embedder supports multi-standard operations such as SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).

Kramer Electronics 6810HDXL Features

  • Max. Data Rate - 3Gbps
  • Inputs - 1 video & 4 AES/3id
  • Outputs - 1 video & 4 AES/3id
  • Looping Video Input
  • Group Select - Selects the group that contains the channel pair to embed or de-embed
  • Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M)
  • Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances
  • Status Indicators - Audio group detect, embed/de-embed group select and SD/HD lock
  • Desktop Size - Compact size. 2 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter

What's in the box:

  • Kramer Electronics 3G HD-SDI AES Audio Embedder and De-embedder
  • Power Adapter
  • Kramer Electronics Warranty
