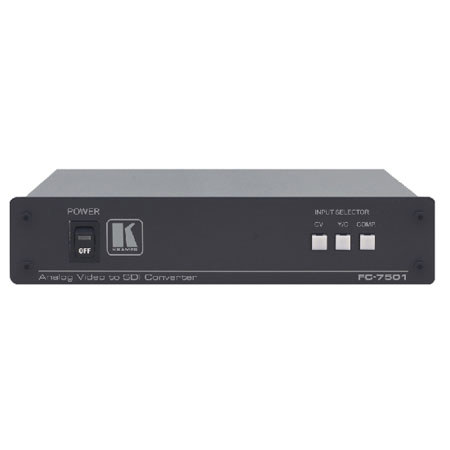

Kramer Electronics FC-7501 Format Converter
Kramer Electronics

Kramer Electronics FC-7501 Analog Video to SDI Format Converter

SKU: VDKRFC7501 MFR: FC-7501
What's Included
What's Included With This Item:
  • Kramer Electronics FC-7501 Format Converter
  • Power Supply
  • Windows-Based Kramer Electronics Control Software
  • Kramer Electronics Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$543.75
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The FC-7501 is a format converter for composite video, s-Video or component video (YUV) signals. It converts either PAL, SECAM and NTSC composite video, s-Video, or component (YUV) signals into 2 SDI (SMPTE 259) signals simultaneously.

What's Included With This Item

  • Kramer Electronics FC-7501 Format Converter
  • Power Supply
  • Windows-Based Kramer Electronics Control Software
  • Kramer Electronics Warranty

Key Features

  • Multi-Standard This device will accept NTSC or PAL signals
  • Composite or Y/C: Although this unit is designed to process component signals, it will also convert composite or Y/C, utilizing the same BNC connectors
  • Excellent Quantization: Featuring 10-Bit Accuracy
  • Processing Amplifier: Able to video parameters via RS-232 and a PC
  • Dual SDI Outputs: Two SDI outputs are featured, offering the user a simple SDI DA

Technical Specs

Input 1 composite video: 1Vpp/75ohm (Y) looping on BNC connectors with a termination switch; 1 (B-Y): 0.7Vpp/75ohm looping on BNC connectors with a termination switch; 1 (R-Y)/C 0.7Vpp/0.3Vpp/75ohm looping on BNC connectors with a termination switch
Outputs 2 SDI on BNC connectors
Video Standards CV, YC: NTSC (M, Japan, 4.43), PAL (B, D, G, H, I, M, N, Nc) and SECAM (B, D, G, K, K1, L)
Bandwidth (-3db) 6MHz
Resolution 10 bits
Luminance Non-linerarity 1% (worst case)
K-factor 0.10%
S/n Ratio 57dB (worst case)
Chroma/luma Delay <10ns
Sdi Pixel Jitter <500ps (10Hz HPF) with PLL option board. <1ns (10kHz HPF) without PLL option board
Input Coupling DC or AC via internal jumpers
Power Source 12V DC, 320mA
Dimensions (W x D x H) 8.7 x 7 x 1.7"/22 x 18 x 4.5cm
Weight 2.9 lbs/1.3 kg
