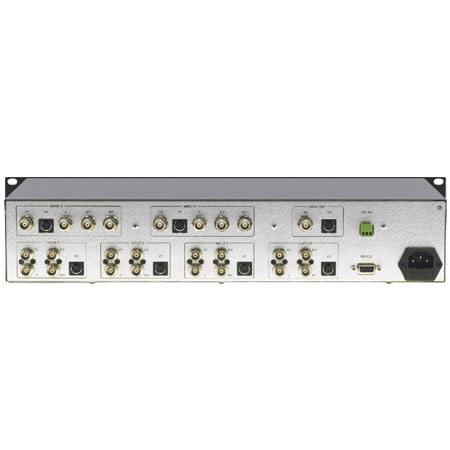

Kramer Electronics PIP-500 Picture-In-Picture Inserter
Kramer Electronics

Kramer Electronics PIP-500 5-Video Picture-In-Picture Inserter and Quad Splitter, NTSC/PAL/SECAM

SKU: VDKRPIP500 MFR: PIP-500
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer Electronics PIP-500 Picture-In-Picture Inserter
  • Power Cord
  • Null-Modem Adapter
  • Windows Based Control Software
  • Kramer Electronics Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$2,058.75
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Kramer Electronics PIP-500

The PIP-500 is a high-performance picture-in-picture inserter for up to 5 signals. The unit can accept and process composite video, s-Video (Y/C) and component video (YUV) signals. The PIP output can display up to 5 images simultaneously, each of which can be individually sized and positioned. The PIP-500 also has an additional quad output mode which displays four inputs in four equal sized images.

Kramer Electronics PIP-500 Includes

  • Kramer Electronics PIP-500 Picture-In-Picture Inserter
  • Power Cord
  • Null-Modem Adapter
  • Windows Based Control Software
  • Kramer Electronics Warranty

Kramer Electronics PIP-500 Features

  • Automatic NTSC/PAL/SECAM Mixing: The PIP-500 accepts all NTSC, PAL and SECAM standard signals. Conveniently, the monitor can mix these standards allowing for more versatile operation across all regions of the world
  • Multiple Pre-sets: The deck can preset 2 different PIP modes that can be retrieved with the touch of a button
  • Picture-in-Picture Options: All inputs can be displayed simultaneously, variable window sizing (1:1, 1:4, 1:9 or 1:16 each input), variable window positioning, freeze frame capability, optional window border and text labeling available for all inputs
  • Dedicated Quad Output Mode: 4 quarter-screen images displayed simultaneously for both s-Video and composite video outputs
  • Flexible Control Options: Front panel (with LCD and on-screen displays) and RS-232 (Windows-based Kramer control software is included)

Kramer Electronics PIP-500 Specifications

Input 5 sets of inputs, each set with 1 composite video 1Vpp/75ohm on a BNC connector, 1 s-Video 1Vpp, 0.3Vpp/75ohm on a 4-pin connector and 1 component video 1Vpp, 0.7Vpp, 0.7Vpp/75ohm on 3 BNC connectors
Output PIP: 1 composite video 1Vpp/75ohm on a BNC connector, 1 s-Video 1Vpp, 0.3Vpp/75ohm on a 4-pin connector, component video 1Vpp, 0.7Vpp, 0.7Vpp/75ohm on BNC connectors. Quad: 4 quarter screen images: 1 composite video 1Vpp/75ohm on a BNC connector & 1 s-Video 1Vpp, 0.3Vpp/75ohm on a 4-pin connector
Digital Resolution 10 bit
Video Bandwidth 0.5dB to 5MHz
Signal To Noise Ratio 60dB
K-factor 0.50%
Differential Phase 1%
Differential Gain 1%
Luma Non-linearity 1%
Chroma/luma Delay <15ns
Yc Separation Adaptive 4-line digital comb filters
Memory Non-volatile memory for storage of 2 setups
Control Front-panel and RS-232: PIP size, position and layer priority; motion detection sensitivity (option); video ProcAmp functions; video zoom; freeze
Indicators Multi-character display on the front panel
Dimensions (W x D x H) 19" x 7" x 2U / 48.26cm x 17.78cm x 2U
