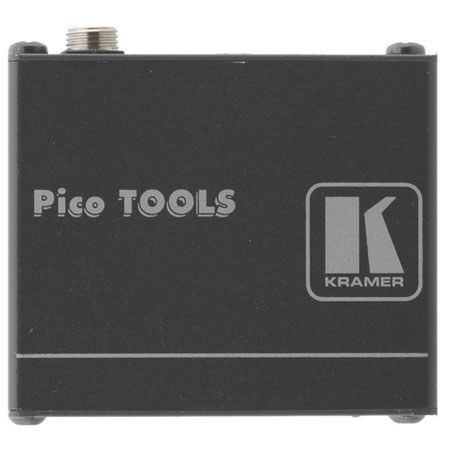

Kramer Electronics PT-100 Computer Graphics Video Over Twisted Pair Line Equalizer, 100m Transmission Range
SKU: VDKRPT100
This item is no longer available.
Share:
Overview
Compare
Learn
Specs
Protection
About Kramer Electronics PT-100
The Kramer Electronics Computer Graphics Video over Twisted Pair Line Equalizer is used to provide compensation for signals arriving at a switcher or other devices in between a twisted pair transmitter and receiver. Providing level and equalization controls, the equalizer ensures transmission of error-free signals. Offering a transmission distance of up to 320' (100m), the PT-100 provides the ability to extend signals up to 640' (200m) when placed halfway between the twisted pair transmitter and receiver.
The equalizer requires a 12V DC power supply (included) for operation; when either the transmitter or the receiver is within 150' (50m) of the extender, a single connection to either device powers the extender. In addition, 4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor.
Kramer Electronics PT-100 Features
- Used to provide compensation for signals arriving at a switcher or other devices in between a twisted pair transmitter and receiver
- Level and equalization controls
- Transmission of error-free signals
- Transmission distance of up to 320' (100m)
- Extends transmission distance up to 640' (200m) when placed halfway between the twisted pair transmitter and receiver
- Requires a 12V DC power supply (included) for operation
- Power Connect System - when either the transmitter or the receiver is within 150' (50m) of the extender, a single connection to the either device powers the device
- 4 units can be mounted side-by-side in 1U rack space with the optional RK-4PT rack adaptor
