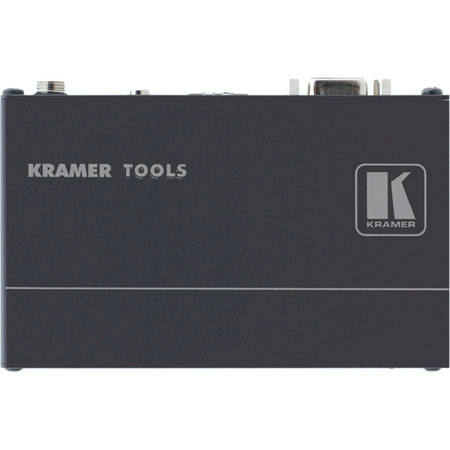

Kramer Electronics TP-141 Video and Audio Transmitter
Kramer Electronics

Kramer Electronics TP-141 Computer Graphics Video and Stereo Audio Over Twisted Pair Transmitter

SKU: VDKRTP141 MFR: TP-141
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer Electronics TP-141 Video and Audio Transmitter
  • Power Supply
  • Kramer Electronics Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$271.25
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Kramer Electronics TP-141

The TP-141 Computer Graphics Video & Stereo Audio over Twisted Pair Transmitter from Kramer Electronics is one component in a transmission system designed to transport computer graphics video (including HDTV) and unbalanced stereo audio signals over twisted pair cable. Signals are input on standard audio-video connectors and then transmitted over Ethernet cable before being translated back to their original signal format for output.

Kramer Electronics TP-141 Includes

  • Kramer Electronics TP-141 Video and Audio Transmitter
  • Power Supply
  • Kramer Electronics Warranty

Kramer Electronics TP-141 Features

  • This unit supports resolutions up to UXGA
  • It is HDTV-compatible
  • Audio and video is transmitted using RJ-45 connectors
  • Audio support includes unbalanced stereo and S/PDIF (24-bit 48kHz) simultaneously
  • It offers a system range of up to 750' (250m) when using Kramer BCP-HDTP cable, or 600' (182m) when using Kramer's standard skew-free cable, such as the BC-XTP
  • Use UTP (unshielded twisted pair) or STP (shielded twisted pair), such as CAT-5
  • It uses the Power Connect System, which only requires one unit in a system, the transmitter or the receiver, to be connected to a power source when the devices are within 150' (50m) of each other
  • This device belongs to the Compact Kramer TOOLS family of products and up to (3) of the units can be mounted side by side in 1U of rack space with the optional RK-3T rack adapter

Kramer Electronics TP-141 Specifications

Inputs Video: 1 computer graphics video on a 15-pin HD connector
Audio: 1 audio analog 3.5mm mini jack
Outputs 1 RJ-45 OUT connector
Max. Output Level Video: 1V
Audio: 2.5V
Bandwidth (-3db) Audio: 20Hz-20kHz @0.5dB
Resolution Exceeding UXGA
S/N Ratio Audio: <-80dB
Total Gain Audio: Analog/analog: 0dB, Analog/SPDIF: -12dBFS
Coupling AC
THD+N Audio: <0.01%
Power Source 12V DC, 60mA
Dimensions (W x D x H) 12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95")
Weight 0.3kg (0.67lbs) approx
