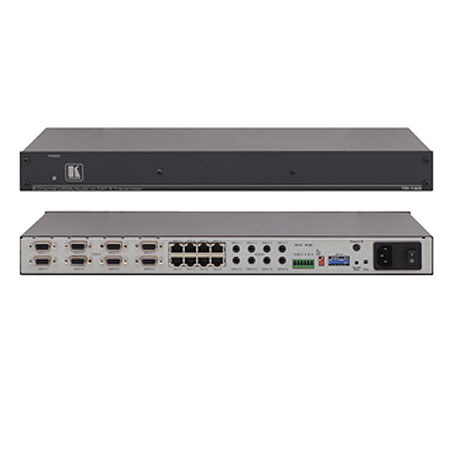

Kramer Electronics TP185 8 Chan Video/Audio Transm

Kramer Electronics TP-185 8-Channel Computer Graphics Video, Audio and Data Over Twisted Pair Transmitter

SKU: VDKRTP185
Be the first to review this item

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Kramer Electronics TP-185 Specifications

Related Articles & Videos

About Kramer Electronics TP-185

The Kramer Electronics TP-185 is a twisted pair transmitter for computer graphics, unbalanced stereo audio and RS-232/RS-485 signals. The unit takes up to eight channels of signals and transmits them over eight twisted pair outputs to compatible twisted pair receivers. The TP-185 also works as the ideal companion to an eight output matrix switcher - easily converting the outputs to CAT 5.

Kramer Electronics TP-185 Features

  • Max. Resolution: WUXGA
  • HDTV Compatible
  • Video Inputs: 8 computer graphics video & HDTV (Y, Pr, Pb) signals on 15-pin HD connectors
  • Audio Inputs: 8 stereo audio on 3.5mm mini-jack plugs
  • One-Source Data: RS-232 or RS-485 data from one source to any or all eight destination receivers
  • Outputs: 8 CAT 5 on RJ-45 connectors
  • System Range: Up to 100m (320ft). Greater distances possible depending on resolution and cable
  • Cable: UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5

What's in the box:

  • Kramer Electronics TP185 8 Chan Video and Audio Transmitter
  • Power Cord
  • Windows Based Control Software
  • Rack Ears
  • Kramer Electronics Warranty
