About Kramer Electronics TP-310A

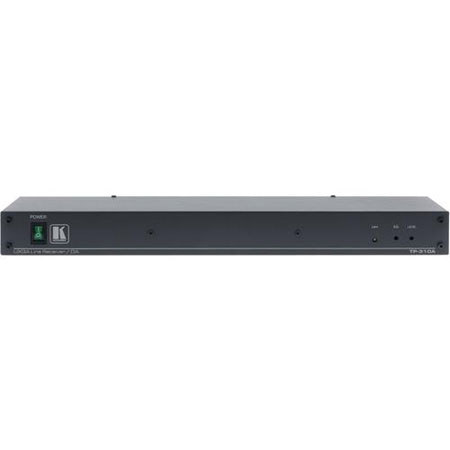

The Kramer TP-310A is a high-performance twisted pair receiver and distribution amplifier for computer graphics video, audio and RS-232 signals. The unit takes one twisted pair input and provides ten twisted pair outputs plus two computer graphics video, two stereo audio, two S/PDIF audio and two RS-232 outputs for local monitoring.

Kramer Electronics TP-310A Features

  • HDTV Compatible
  • Level (Gain) & EQ (Peaking) Controls - 15-pin HD outputs
  • Max. Resolution - WUXGA & 1080p
  • Twisted Pair Connectors
  • Audio Outputs - 2 unbalanced stereo audio on 3.5mm mini jacks, 2 S/PDIF on RCA connectors
  • RS-232 Outputs - 2 RS-232 outputs on 4-pin terminal blocks
  • Sync Polarity Settings - H & V switches
  • System Range (Twisted Pair) - Up to 100m (320ft)
  • Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5
  • Power Connect System - Only the TP-310A needs to be connected to a power source when the devices are within 50m (150ft) of each other
  • Worldwide Power Supply - 100-240V AC

What's in the box:

  • Kramer TP-310A 1:10 Receiver and Distribution Amplifier
  • 1U Rack Ears
  • Power Cord
  • Kramer Warranty
