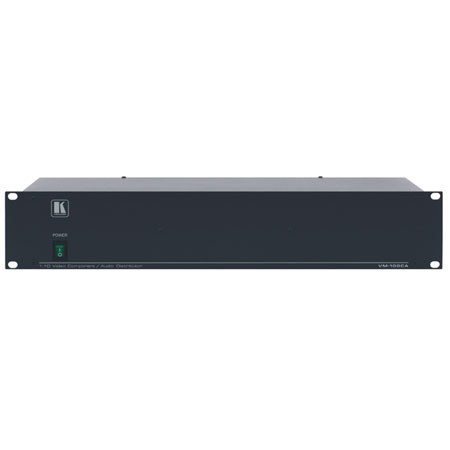

Kramer VM100CA 1:10 Video/Audio Distribution Amplifier
Kramer Electronics

Kramer VM-100CA 1:10 Component and Stereo or S/PDIF Audio Distribution Amplifier

SKU: VDKRVM100CA MFR: VM100CA
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer VM-100CA 1:10 Component and Stereo or S/PDIF Audio Distribution Amplifier
  • Power Cord
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$636.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Kramer Electronics VM-100CA

The Kramer VM-100CA is a distribution amplifier for component video along with analog and digital audio signals. It takes one input of each signal type, provides correct buffering and isolation and distributes the signal to 10 identical outputs on RCA connectors.

Kramer Electronics VM-100CA Includes

  • Kramer VM-100CA 1:10 Component and Stereo or S/PDIF Audio Distribution Amplifier
  • Power Cord
  • Kramer 7 Years Limited Warranty

Kramer Electronics VM-100CA Features

  • High Bandwidth - 450MHz (-3dB)
  • Audio Section - Accepts unbalanced stereo and/or S/PDIF audio
  • Audio Level Gain Controls - Unbalanced stereo
  • HDTV Compatible
  • Looping Input
  • Video Level (Gain) and EQ (Peaking) Controls
  • Selectable Input Signal Termination - Video and S/PDIF
  • Worldwide Power Supply - 100-240V AC
  • Standard 19" Rack Mount Size - 2U

Kramer Electronics VM-100CA Specifications

Input 1 component video (Y, Pb/Cb, Pr/Cr) 1Vpp/75 Ohm on RCA connectors; 1 digital audio (S/PDIF) 75 Ohm on RCA connectors; 1 unbalanced stereo audio +4dBu (nom.)/50k Ohm on RCA connectors
Outputs 10 component video (Y, Pb/Cb, Pr/Cr) 1Vpp/75 Ohm on RCA connectors; 10 digital audio (S/PDIF) 75 Ohm on RCA connectors; 10 unbalanced stereo audio +4dBu (nom.)/150 Ohm on RCA connectors
Max. Output Level Video: 2.5Vpp; Audio: 27Vpp (unbalanced)
Bandwidth (-3dB) Video: 450MHz, fully loaded. Audio: 100kHz (unbalanced)
Diff. Gain 0.03%
Diff. Phase 0.03Deg
K-factor <0.05%
S/N Ratio Video: 77dB; Audio: 75dB
Crosstalk (all Hostile) Video: -51dB
Controls Level: -1dB to +6.4dB; Equalization: 0dB to +7.3dB; Audio: -87dB to +6.1dB
Coupling Video: DC; Audio: Input: AC; Output: DC
Audio THD + Noise 0.024%
Audio 2nd Harmonic 0.002%
Power Source 100-240V AC, 50/60 Hz; 18VA
Dimensions 19" x 7" x 1U W x D x H rack mountable
Weight 3.7kg (8.2lbs) approx
Warranty Kramer 7 years limited warranty
