Kramer Vm-10an 1:10 Distribution Amplifier Loop...
Kramer Electronics

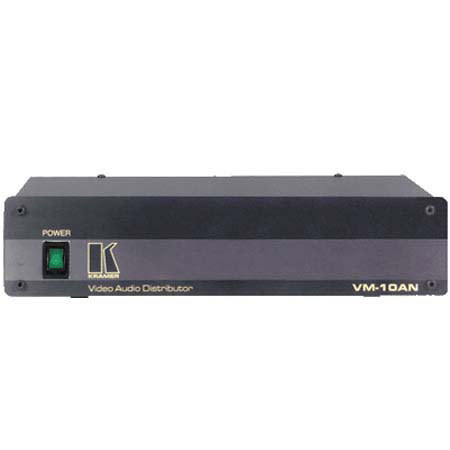

Kramer Vm-10an 1:10 Distribution Amplifier Looping Video / Audio Stereo da with AC or DC Coupling 77 mhz

SKU: VDKRVM10AN MFR: VM10AN
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

$585.00 Special Price Available
Free shipping
Qty:

Add to Wishlist
OverviewTech Specs

About this item

The Kramer VM-10AN is a compact, high quality 1:10 distribution amplifier using BNC connectors for composite video, and RCA connectors for audio stereo signals. It accepts one set of inputs, provides correct buffering and isolation, and distributes it to up to ten identical outputs designed to drive monitors, projectors, and other receiving devices. Bandwidth exceeding 70MHz ensures transparent performance with typical video and audio sources.

Looping inputs make it easy to expand to larger distribution systems. The VM-10AN is rugged, dependable, and is housed in a convenient desktop sized enclosure. It can also be mounted in a standard 19" rack using the RK-10 kit, which holds one unit in two vertical spaces.

Technical Specs

INPUTS 1 video looping, 1Vpp/75 W on BNCs with termination switch.

1 audio stereo 50 kW, looping on RCAs
OUTPUTS 10 composite video 1 Vpp/75 W on BNCs.

10 audio stereo, 100 W, 1V nom. on RCAs.
VIDEO BANDWIDTH 77 MHz. -3dB
AUDIO S/N RATIO Better than 89 dB.
VIDEO S/N RATIO Better than 74 dB.
AUDIO THD Less than 0.025%
AUDIO BANDWIDTH 20kHz. -1dB.
COUPLING DC/AC internally selectable (video).
K-FACTOR <0.05%.
MAX. VIDEO OUTPUT 2.5 Vpp.
DIFF. GAIN 0.33%.
DIFF. PHASE 0.26 Deg.
DIMENSIONS 24.5cm X 16cm X 5cm (9.6" x 6.3" x 2", H, W, D.)
POWER SOURCE 230VAC, 50/60 Hz, (115V U.S.A.) 10.5 VA.
WEIGHT 1.8 kg (4 lbs.) Approx.
