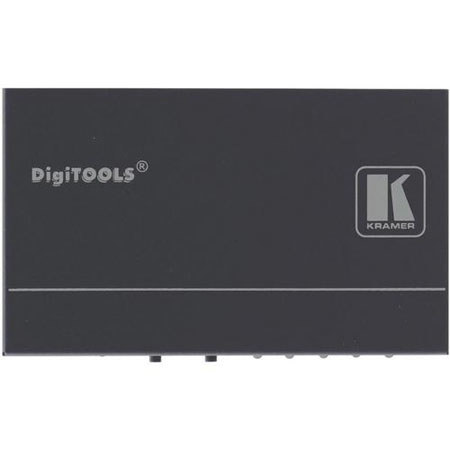

Kramer Electronics VM-22HDMI 2 x 1:2 HDMI Amplifier
Kramer Electronics

Kramer Electronics VM-22H 2 x 1:2 HDMI Distribution Amplifier

SKU: VDKRVM22H MFR: VM-22H
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer Electronics VM-22HDMI 2 x 1:2 HDMI Distribution Amplifier
  • IR Remote Control
  • Power Supply
  • Bracket Installation Kit
  • Kramer Electronics Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$360.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The VM-22HDMI 2 x 1:2 HDMI Distribution Amplifier from Kramer Electronics allows you to switch between (2) HDMI inputs and distribute the selected source on (2) identical outputs. The signal is reclocked and equalized to maintain integrity and achieve greater transmission distances.

What's Included With This Item

  • Kramer Electronics VM-22HDMI 2 x 1:2 HDMI Distribution Amplifier
  • IR Remote Control
  • Power Supply
  • Bracket Installation Kit
  • Kramer Electronics Warranty

Key Features

  • This unit offers a maximum data rate of 2.25Gbps
  • It is HDCP-compliant
  • Enhanced EDID (Extended Display Identification Data) can store a separate EDID for each input in non-volatile memory, as well as save a default EDID if one is not stored, both of which allow for easier reconnection to the source
  • LED indicators provide a visual indicator of line status
  • Switching can be controlled on the front panel or with an IR remote control
  • Kramer's proprietary re-Klocking & Equalization Technology rebuilds the digital signal integrity to travel longer distance
  • This device belongs to the Compact DigiTOOLS Series and up to (3) of these units can be mounted side by side in 1U of rack space with the optional RK-3T rack adapter

Technical Specs

Inputs (2) HDMI
Outputs (2) HDMI
Bandwidth Supports up to 2.25Gbps bandwidth per graphic channel
Standards Supports HDMI 1.3 and HDCP
Control EDID SETUP button, input select button
Indicators IN 1, IN 2, OUT 1, OUT 2 and ON LEDs
Power 5VDC, 910mA
Dimensions (H x W x D) 0.96 x 4.7 x 2.8" (2.44 x 11.94 x 7.11cm)
Weight 0.67 lbs (0.3kg)
