Studio/Field Editing Equipment
Distribution Amplifiers

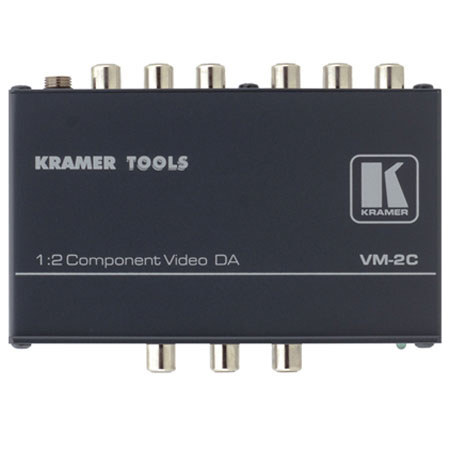

Kramer VM-2C 1:2 Component Video Distribution Amplifier
Kramer Electronics

Kramer VM-2C 1:2 Component Video Distribution Amplifier

SKU: VDKRVM2C MFR: VM2C
What's Included
What's Included With This Item:
  • Kramer VM-2C 1:2 Component Video Distribution Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$144.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer VM-2C is a high-performance distribution amplifier for component Video (RGB/YUV) signals. It takes one input, provides correct buffering and isolation and distributes the signal to 2 identical outputs.

What's Included With This Item

  • Kramer VM-2C 1:2 Component Video Distribution Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty

Key Features

  • High Bandwidth - 510MHz (-3dB)
  • HDTV Compatible
  • Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Technical Specs

Input Component video (Y, PB/CB, PR/CR, or Y, U, V) on RCA connectors, 1Vpp/75 Ohm
Outputs 2 component video (Y, PB/CB, PR/CR, or Y, U, V) on RCA connectors, 1Vpp/75 Ohm
Max. Output Level 2.4Vpp
Bandwidth (-3dB) 510MHz
Diff. Gain 0.03%
Diff. Phase 0.03%
K-factor <0.05%
S/N Ratio 73dB weighted
Crosstalk (all Hostile) 58dB @5MHz
Coupling DC
Power Source 12V DC, 71mA
Dimensions 12cm x 7.5cm x 2.5cm (4.7" x 0.98" x 2.95"), W x D x H
Weight 0.3kg (0.66lbs)
Warranty Kramer 7 years limited warranty
