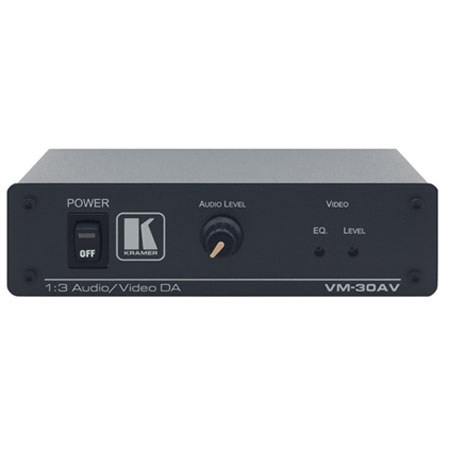

Kramer VM30AV 1:3 Video/Audio Distribution Amplifier
Kramer Electronics

Kramer VM-30AV 1:3 Composite Video & Stereo Audio Distribution Amplifier, Video on RCA Connectors

SKU: VDKRVM30AV MFR: VM30AV
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer VM-30AV 1:3 Composite Video & Stereo Audio Distribution Amplifier
  • 12V DC Power Supply
  • Brackets for Stacking Multiple Units
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$192.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer VM-30AV is a compact distribution amplifier for composite or SDI video and unbalanced stereo audio signals. It provides controls to compensate for signal losses inherent in long cable runs.

What's Included With This Item

  • Kramer VM-30AV 1:3 Composite Video & Stereo Audio Distribution Amplifier
  • 12V DC Power Supply
  • Brackets for Stacking Multiple Units
  • Kramer 7 Years Limited Warranty

Key Features

  • Video on RCA Connector
  • Audio Level Control
  • Level (Gain) and EQ (Peaking) Controls
  • Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter

Technical Specs

Inputs 1 video, 1 Vpp/75 Ohm on an RCA connector; 1 audio stereo, 1Vpp/70k Ohm on RCA connector
Outputs 3 video, 1 Vpp/75 Ohm on RCA connectors; 3 audio stereo, 1Vpp/150 Ohm on RCA connectors
Max. Output Level Video: 2Vpp; audio: 5.4Vpp
Bandwidth (-3dB) Video: 430MHz, audio: 100kHz
Diff. Gain 0.04%
Diff. Phase 0.07Deg
K-factor 0.05%
S/N Ratio Video: 73dB, audio: 83dB
Controls Video level: -1.1 to +1.8dB, EQ.: 0 to +4.6dB @5.8MHz; Audio level: -66 to +16dB
Coupling AC
Audio THD+noise 0.3%
Audio 2nd Harmonic 0.02%
Power Source 12V DC, 30mA typical
Dimensions 16.5cm x 12cm x 4.5cm (6.5" x 4.7" x 2.8") W x D x H
Weight 0.65kg (1.4lbs) approx
Warranty Kramer 7 years limited warranty
