Kramer VM30AVB 1:3 Video/Audio Distribution Amplifier
Kramer Electronics

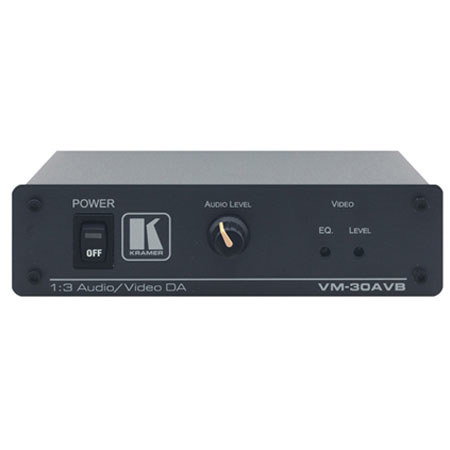

Kramer VM-30AVB 1:3 Composite Video & Stereo Audio Distribution Amplifier, Video on BNC Connectors

SKU: VDKRVM30AVB MFR: VM30AVB
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$192.00
Free Shipping (USA)
Qty:

Add to Wishlist

About the Kramer Electronics VM-30AVB

The Kramer VM-30AVB is a compact distribution amplifier for composite or SDI video and unbalanced stereo audio signals. It provides controls to compensate for signal losses inherent in long cable runs.

Kramer Electronics VM-30AVB Includes

  • Kramer VM-30AVB 1:3 Composite Video & Stereo Audio Distribution Amplifier
  • 12V DC Power Supply
  • Brackets for Stacking Multiple Units
  • Kramer 7 Years Limited Warranty

Kramer Electronics VM-30AVB Features

  • High Bandwidth - 430MHz at -3dB
  • Video on BNC Connector
  • Audio Level Control
  • Level (Gain) and EQ (Peaking) Controls
  • Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter

Kramer Electronics VM-30AVB Specifications

Inputs 1 video, 1 Vpp/75 Ohm on a BNC connector; 1 audio stereo, 1Vpp/70k Ohm on RCA connectors
Outputs 3 video, 1 Vpp/75 Ohm on BNC connectors; 3 audio stereo, 1Vpp/150 Ohm on RCA connectors
Max. Output Level Video: 2Vpp; audio: 5.4Vpp
Bandwidth (-3dB) Video: 430MHz, audio: 100kHz
Diff. Gain 0.04%
Diff. Phase 0.07Deg
K-factor 0.05%
S/N Ratio Video: 73dB, audio: 83dB
Controls Video level: -1.1 to +1.8dB, EQ.: 0 to +4.6dB @5.8MHz; Audio level: -66 to +16dB
Coupling AC
Audio THD+noise 0.30%
Audio 2nd Harmonic 0.02%
Power Source 12V DC, 50mA typical
Dimensions 16.5cm x 12cm x 4.5cm (6.5" x 4.7" x 2.8") W x D x H
Weight 0.65kg (1.4lbs) approx
Warranty Kramer 7 years limited warranty
