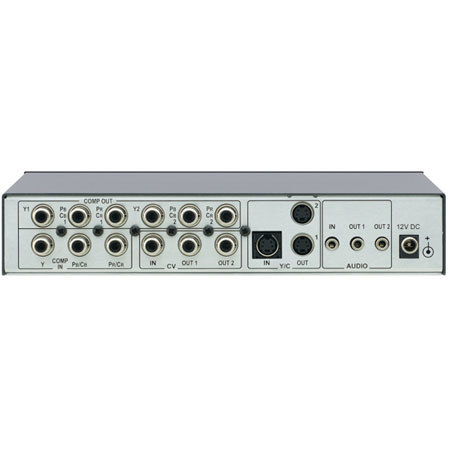

Kramer VM312 1:2 Video/Audio Distribution Amplifier
Kramer Electronics

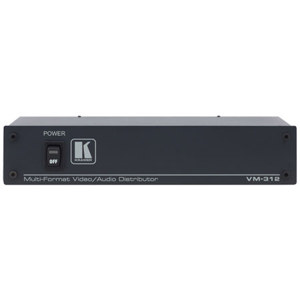

Kramer VM-312 1:2 Multi-Format Video Distribution Amplifier with Stereo Audio

SKU: VDKRVM312 MFR: VM312
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer VM-312 1:2 Multi-Format Video Distribution Amplifier with Stereo Audio
  • Power Cord
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$236.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Kramer Electronics VM-312

The Kramer VM-312 is a multi-format video distribution amplifier for composite, S-Video (Y/C) and component (HDTV) signals with one audio input for an unbalanced stereo audio signal. It takes one input of each video format and one audio input on a 3.5mm mini jack connector and distributes each signal type to 2 identical outputs.

Kramer Electronics VM-312 Includes

  • Kramer VM-312 1:2 Multi-Format Video Distribution Amplifier with Stereo Audio
  • Power Cord
  • Kramer 7 Years Limited Warranty

Kramer Electronics VM-312 Features

  • High Bandwidth - Composite: 490MHz (-3dB), s-Video (Y): 420MHz (-3dB) & Component: 450MHz (-3dB)
  • HDTV Compatible - Component input
  • Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter

Kramer Electronics VM-312 Specifications

Input 1 composite video on an RCA connector 1Vpp/75 Ohm; 1 component video (Y, B-Y and R-Y) on RCA connectors 1Vpp/0.7Vpp/75 Ohm; 1 s-Video on a 4-pin connector 1Vpp/0.3Vpp/75 Ohm; 1 stereo unbalanced on a 3.5mm mini jack connector 4dBu/50k Ohm
Outputs 2 composite video on RCA connectors 1Vpp/75 Ohm; 2 component video (Y, B-Y and R-Y) on RCA connectors 1Vpp/0.7Vpp/75 Ohm; 2 s-Video on 4-pin connectors 1Vpp/0.3Vpp/75 Ohm; 2 stereo unbalanced on 3.5mm mini jack connectors 4dBu/150 Ohm
Max. Output Level Video: 1.8Vpp; Audio: 21Vpp
Bandwidth (-3dB) CV: 490MHz; YUV: 450MHz; Y/C: 420MHz; Audio: >100kHz
Diff. Gain 0.05%
Diff. Phase 0.03Deg
K-factor <0.05%
S/N Ratio Video: 75dB; Audio: 82dB
Crosstalk (all Hostile) Video: -52dB @5MHz; Audio: -45dB video into audio @15kHz
Coupling Video: DC; Audio: Input: AC; output: DC
Audio THD + Noise 0.047% @1kHz
Audio 2nd Harmonic 0.001% @1kHz
Power Source 12V DC, 130mA
Dimensions 21.5cm x 16.25cm x 4.36cm (8.45" x 6.39" x 1.72") W x D x H
Weight 1.2kg (2.65lbs) approx
Warranty Kramer 7 years limited warranty
