Kramer Electronics VM-3VN 1:3 Composite Video Amplifier
Kramer Electronics

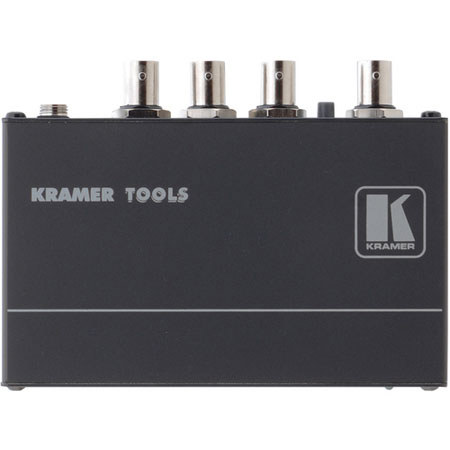

Kramer Electronics VM-3VN 1:3 Composite Video Distribution Amplifier

SKU: VDKRVM3VN MFR: VM-3VN
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer Electronics VM-3VN 1:3 Composite Video Distribution Amplifier
  • Power Supply
  • Kramer Electronics Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$140.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Kramer Electronics VM-3VN

The Kramer Electronics VM-3VM is a 1x3 Composite Distribution Amplifier with selectable input signal termination. The unit takes (1) BNC composite video input and distributes it to (3) BNC composite video outputs. The VM-3VN has a bandwidth of 430MHz, level and EQ controls and provides correct isolation of all (3) output signals. Additionally, the amplifier can be mounted with two others in a rack mount configuration, taking up only 1RU in any standard 19" EIA racking system.

Kramer Electronics VM-3VN Includes

  • Kramer Electronics VM-3VN 1:3 Composite Video Distribution Amplifier
  • Power Supply
  • Kramer Electronics Warranty

Kramer Electronics VM-3VN Features

  • High Bandwidth; 430MHz (-3dB)
  • Selectable input signal termination
  • Level (Gain & EQ) peaking controls
  • (3) Units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Kramer Electronics VM-3VN Specifications

Inputs 1 composite video on a BNC connector
Outputs 3 composite video on BNC connectors
Max. Output Level 1.8Vpp
Bandwidth (-3dB) 430MHz
Diff Gain 0.12%
Diff Phase 0.03Deg.
K-Factor <0.05%
S/N Ratio 74.3dB
Controls Level: -1.6 to +6dB; Equalization: 0 to +6dB
Coupling AC
Power Source 12V DC, 27mA
Dimensions (W x D x H) 11.7cm x 6cm x 3.2cm (4.6" x 2.4" x 1.3")
Weight 0.28kg (0.62lbs) approx.
