Kramer VM4HDXL 1:4 3G HD-SDI Distribution Amplifier
Kramer Electronics

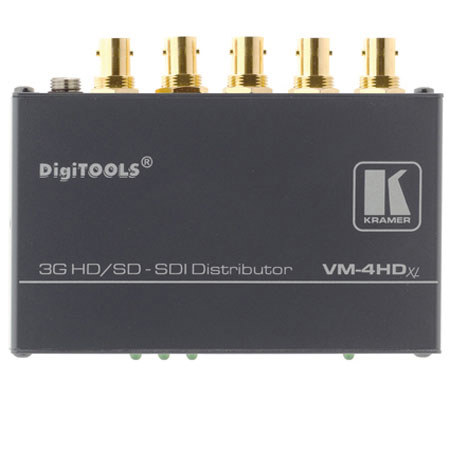

Kramer VM-4HDXL 1:4 3G HD-SDI Video Distribution Amplifier

SKU: VDKRVM4HDXL MFR: VM4HDXL
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer VM-4HDXL 1:4 3G HD-SDI Video Distribution Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$476.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer VM-4HDXL is a high-performance distribution amplifier for SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M) signals. The unit takes one input, provides reclocking and equalization and distributes the signal to four identical outputs.

What's Included With This Item

  • Kramer VM-4HDXL 1:4 3G HD-SDI Video Distribution Amplifier
  • Power Supply
  • Mounting Bracket
  • Kramer 7 Years Limited Warranty

Key Features

  • Max Data Rate - 3Gbps
  • Multi-Standard Operation - SDI, HD-SDI or 3G HD-SDI
  • Kramer re-Klocking & Equalization Technology - Rebuilds the digital signal to travel longer distances
  • HD-SDI & SDI Input Indication LEDs
  • Compact DigiTOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter

Technical Specs

Input 1 SMPTE-259M/292M/344M/424M serial video 75 Ohm on a BNC connector
Outputs 4 equalized and reclocked SMPTE-259M/292M/344M/424M outputs 75 Ohm on BNC connectors
Maximum Data Rate 2.97Gbps
Max. Output Level 800mVpp/75 Ohm
Coupling AC
Power Source 12V DC, 250mA
Dimensions 12.02cm x 7.08cm x 2.42cm (4.73" x 2.79" x 0.95") (W x D x H)
Weight 0.3kg (0.31lbs) approx
Warranty Kramer 7 years limited warranty
