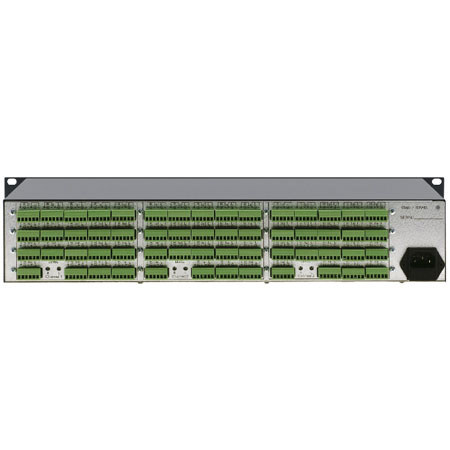

Kramer Electronics VM-54A 1:54 Balanced Audio Amplifier
Kramer Electronics

Kramer Electronics VM-54A 1:54 Balanced Stereo Audio Distribution Amplifier

SKU: VDKRVM54A MFR: VM-54A
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer Electronics VM-54A 1:54 Balanced Stereo Audio Distribution Amplifier
  • Power Cord
  • Kramer Electronics Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$683.75
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The VM-54A 1:54 Balanced Stereo Audio Distribution Amplifier from Kramer Electronics is a designed to manage balanced stereo signals. It can be configured as for single 1:54 or 3 x 1:18 distribution. This solution is well suited for use with duplication, production, or presentation systems, among other possibilities. Other potential applications include schools, retail, sports bars, point-of-sale and CCTV applications, among others.

What's Included With This Item

  • Kramer Electronics VM-54A 1:54 Balanced Stereo Audio Distribution Amplifier
  • Power Cord
  • Kramer Electronics Warranty

Key Features

  • Grouped level (trim) controls are a standard feature
  • Dual mode allows this unit to be configured as a 1:54 or 3 x 1:18 distribution amplifier
  • Signal-to-noise ratio is rated at 85.7dB (unweighted)
  • This unit occupies 2U in a standard 19" equipment rack and can be easily mounted using its built-in rack ears

Technical Specs

Inputs 3 balanced stereo audio +4dBu/50kOhm on detachable terminal blocks
Outputs 3 x 18 balanced stereo audio +4dBu/50Ohm on detachable terminal blocks
Max Output level 25Vpp @1kHz
Audio Bandwidth(-3dB) 80kHz
Gain Range +0.2 to +9.2dB @1kHz
Audio S/N 85.7dB, unweighted
Crosstalk -81.1dB. @1kHz.
Coupling AC at input, DC at output
THD + Noise 0.017%.
2nd Harmonic 0.002%
Power Source 230V AC, 50/60Hz (115V AC USA), 10VA
Dimensions (W x D x H) 19" x 7" x 2U (482.6 mm x 177.8 mm x 2U) rack mountable
Weight 3.5kg (7.7lbs) approx.
