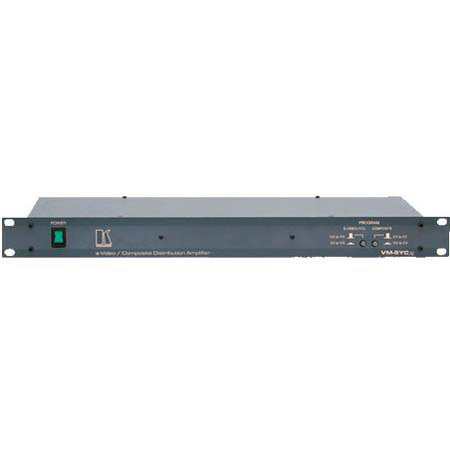

Kramer VM-5YCxl 1:5 Composite / s-Video / Audio Distribution Amplifier
SKU: VDKRVM5YCXL MFR: VM5YCXL
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included With This Item:
Need help? Call 800-223-2500 / 212-741-0052
The Kramer VM-5YCxl is an exceptionally unique 1:5-distribution amplifier for s-Video (YC), composite video, and audio stereo signals. It accepts a single input source and distributes the signal to five identical outputs designed to drive monitors, projectors, or other receiving devices.
The VM-5YCxl is a dual format DA offering BNC connectors for composite video, and 4pin connectors for s-Video. It is a true dual distribution amplifier, allowing for simultaneous distribution of composite video and s-Video.
In addition, it allows bi-directional conversion between YC and composite video, thus allowing, for example, one composite input to 5 composite outputs and 5 YC outputs. Similarly, the YC input can be distributed to the 5 composite and 5 YC outputs.
The composite and YC inputs each have an extra converted output (an extra YC output for the composite video input and an extra composite video output derived from the YC input) so that, even when working as 2 unconverted DAs, there is an extra converted output for monitoring etc
. Rear panel controls are also provided for selecting AC or DC coupling and for termination (to enable looping). Bandwidth exceeding 300MHz ensures transparent performance with typical video and audio sources. The VM-5YCxl is rugged, dependable, and housed in a professional 19" rack mountable enclosure, requiring one vertical rack space.
||1 composite video looping, 1Vpp/75W on a BNC connector.
1 looping (Y), 1Vpp/75W (C) 0.3Vpp/75W on a 4P connector.
2 audio stereo looping 1Vpp/ 50 kW on RCAs.
||5 + 1 composite video, 1 Vpp/ 75 W on BNCs.5 + 1 YC, Y=1Vpp/75 W, C=0.3 Vpp/75 W on 4P connectors. 2x5 audio stereo, 1Vpp /100 W on RCAs.
||300 MHz -3dB (composite to composite or YC to YC).
|AUDIO S/N RATIO
||88 dB. unweighted (1Vpp.)
|VIDEO S/N RATIO
||Less than 0.04%.
2nd HARMONIC: 0.015%
||100 kHz -3dB.
||DC or AC (video); AC (audio.)
||<58 dB @ 5MHz.
||19 inch (W), 7 inch (D), 1U (H) rack mountable.
||230VAC 50/60 Hz (115VAC U.S.A.), 12 VA.
||2.5 kg. (5.6 lbs.) approx.
||YC to YC or composite, composite to composite or YC program switches.
