Kramer Electronics Distribution Amplifiers

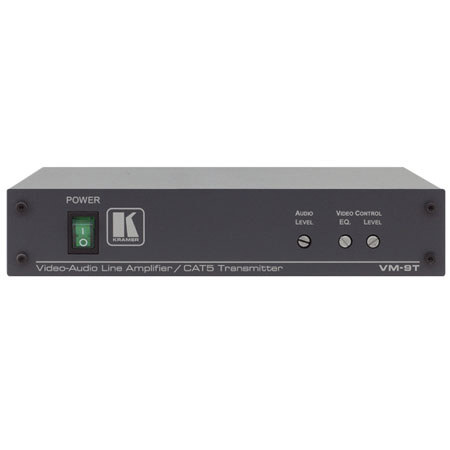

Kramer VM9T 1:2 Video/Audio Distribution, Amplifier
Kramer Electronics

Kramer VM-9T 1:2 Composite Video & Stereo Audio Line Amplifier with Twisted Pair Output

SKU: VDKRVM9T MFR: VM9T
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer VM-9T 1:2 Composite Video & Stereo Audio Line Amplifier
  • Power Cord
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$432.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the Kramer Electronics VM-9T

The Kramer VM-9T is a high quality distribution amplifier for composite video and unbalanced stereo audio signals. It takes one input, provides correct buffering and isolation and distributes the signal to two identical outputs and one twisted pair output on an RJ-45 connector.

Kramer Electronics VM-9T Includes

  • Kramer VM-9T 1:2 Composite Video & Stereo Audio Line Amplifier
  • Power Cord
  • Kramer 7 Years Limited Warranty

Kramer Electronics VM-9T Features

  • High Bandwidth - 350MHz (-3dB)
  • Looping Input
  • Selectable Input Signal Termination
  • Level (Gain) & EQ (Peaking) Controls - Recessed trimmers to prevent tampering
  • Audio Level Control
  • System Range (Twisted Pair) - More than 500m (1500ft). Greater distances possible depending on signal resolution and cable
  • Cable (Twisted Pair) - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5
  • Worldwide Power Supply - 100-240V AC
  • Desktop Size - Compact size. Two units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 adapter

Kramer Electronics VM-9T Specifications

Input 1 looping composite video
1 Vpp/75 Ohm on a BNC connector
1 looping stereo audio +4dBu, on RCA connectors
Outputs 2 composite video
1 Vpp/75 Ohm on BNC connectors
2 stereo audio +4dBu, on RCA connectors
1 CAT 5 on an RJ-45 connector
Max. Output Level Video: 2.4Vpp
Audio: +21dBu
Bandwidth (-3dB) Video: 350MHz
Audio: 43kHz
Diff. Gain 0.04%
Diff. Phase 0.06Deg
K-factor <0.05%
S/N Ratio 76dB
Crosstalk (all Hostile) -67dB
Controls Video:
Level: -0.4dB to +6dB
EQ.: 0dB to +10dB @50MHz
Audio:
Level: -12dB to +12dB
Coupling Video: DC; Audio: AC
Audio THD + Noise 0.02%
Audio 2nd Harmonic 0.005%
Power Source 100-240V AC 50/60Hz, 12VA
Dimensions 21.46cm x 16.25cm x 4.36cm (8.45" x 6.39" x 1.72") (W x D x H)
Weight 1.4kg (3.3lbs) approx
Warranty Kramer 7 years limited warranty
