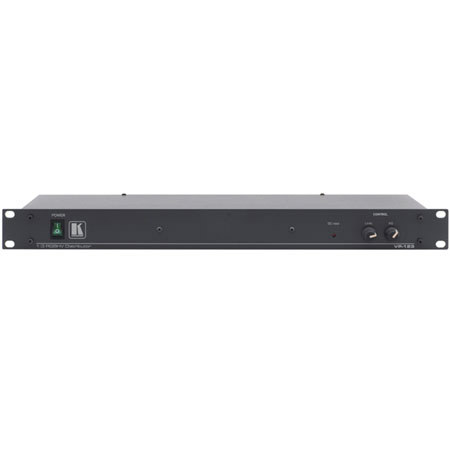

Kramer VP123 1:3 RGBHV Video Distribution Amplifier
Kramer Electronics

Kramer VP-123 1:3 RGBHV Computer Graphics Video Distribution Amplifier

SKU: VDKRVP123 MFR: VP123
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Kramer VP-123 1:3 RGBHV Computer Graphics Video Distribution Amplifier
  • 12V DC Power Supply
  • Kramer 7 Years Limited Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$396.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The Kramer VP-123 is a high-performance amplifier for computer graphics video signals with resolutions ranging from VGA through UXGA and higher. It takes one input, provides correct buffering and isolation and distribute the signal to three identical outputs.

What's Included With This Item

  • Kramer VP-123 1:3 RGBHV Computer Graphics Video Distribution Amplifier
  • 12V DC Power Supply
  • Kramer 7 Years Limited Warranty

Key Features

  • High Bandwidth - 450MHz (-3dB)
  • HDTV Compatible
  • Input - (5 BNCs
  • Level (Gain) and EQ (Peaking) Controls
  • Worldwide Power Supply - 100-240V AC & 12V DC
  • Standard 19" Rack Mount Size - 1U

Technical Specs

Input 1x3 component/RGB/composite video, 1Vpp/75 Ohm on BNC connectors (VP-123) or on a 15-pin HD (F) connector (VP-123V) H Sync and V Sync, TTL level
Output 3x3 component/RGB/composite video, 1Vpp/75 Ohm on BNC connectors 3 x H Sync, V Sync TTL level on BNC connectors
Max. Output Level 2.1Vpp/75 Ohm (R, G, B)
Bandwidth (-3dB) 450MHz
Diff. Gain 0.13%
Diff. Phase 0.02Deg
K-factor <0.05%
S/N Ratio 82.3dB
Crosstalk 55.9dB, all hostile
Controls Level: -0.8 to +6.3 dB; EQ.: 0 to +13.6 dB @50MHz
Coupling DC
Power Source 12V DC, 100mA
Dimensions 19" x 7" x 1U W x D x H rack mountable
Weight 2.36kg (5.2lbs) approx.
Warranty Kramer 7 years limited warranty
