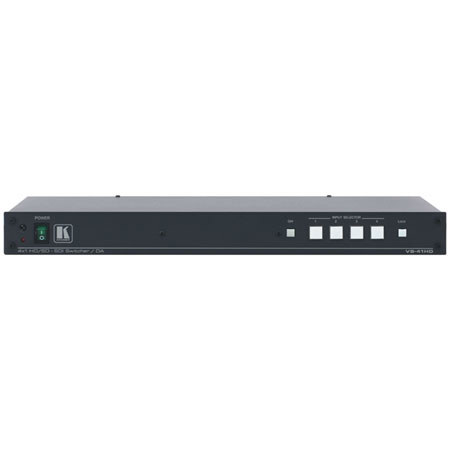

Kramer VS-41HD 4x1:2 HD-SDI Switcher
See all Kramer Electronics items

Kramer Electronics Kramer VS-41HD 4x1:2 HD-SDI Switcher

SKU: VDKRVS41HD
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Kramer Electronics VS-41HD Specifications

About Kramer Electronics VS-41HD

The Kramer VS-41HD is a high-performance switcher for SDI (SMPTE 259M and SMPTE 344M) and HD-SDI (SMPTE 292M) video signals. It switches 4 signals to two identical outputs.

Kramer Electronics VS-41HD Features

  • Max Data Rate - 1.485Gbps
  • HDTV Compatible
  • Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances
  • Flexible Control Options - Front panel, RS-232 (K-Router Windows-based software is included), RS-485, Ethernet, contact closure & IR Remote (included)
  • Active Input Indication Reporting - Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Green indicates a standard definition (SDI) input signal and blue indicates a high definition (HD-SDI) input signal
  • Input and output signals on BNC connectors
  • Analog Sync Type - Bi-level, tri-level
  • Selectable Sync Signal Termination
  • Front Panel Control Lockout
  • Vertical Interval Switching
  • Output Disconnect
  • Worldwide Power Supply - 100-240V AC
  • Standard 19 - 1U. Rack "ears" included

What's in the box:

  • Kramer VS-41HD 4x1:2 HD-SDI Switcher
  • Power Cord
  • Null-Modem Adapter
  • Kramer 7 Years Limited Warranty
