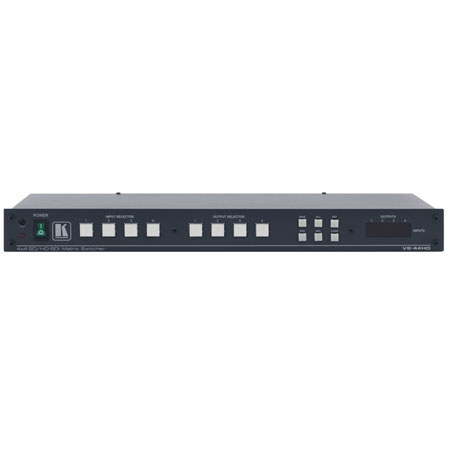

Kramer Electronics Kramer VS-44HD 4x4 HD-SDI Matrix Switcher
SKU: VDKRVS44HD
This item is no longer available.
Share:
Overview
Compare
Learn
Specs
Protection
About Kramer Electronics VS-44HD
The Kramer VS-44HD is a high-performance 4x4 matrix switcher for SD-SDI (SMPTE 259M and SMPTE 344M) and HD-SDI (SMPTE 292M) signals, as well as a dual link 2x2 matrix switcher. Switching is implemented during the vertical interval period according to the SMPTE RP-168 standard, when using synchronized digital video sources.
Kramer Electronics VS-44HD Features
- Max Data Rate - Up to 1.485Gbps
- HDTV Compatible
- Reclocking & Equalization - Automatic
- Switching Synchronization - Synchronize either to external reference or incoming video
- Active Input Type Reporting - Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Green indicates a standard definition (SDI) input signal and blue indicates a high definition (HD-SDI) input signal
- Memory Locations - Store multiple switches as presets (salvos) to be recalled and executed when needed
- Take Button - Execute multiple switches all at once
- Control - Front Panel, RS-232 (K-Router Windows-based software is included), RS-485, Ethernet, contact closure & IR remote (included)
- Analog Sync Type - Bi-level, tri-level
- Selectable Sync Signal Termination
- Front Panel Control Lockout
- Vertical Interval Switching
- Worldwide Power Supply - 100-240V AC
- Standard 19" Rack Mount Size - 1U. Rack "ears" included
