About Kramer Electronics VS-88HD

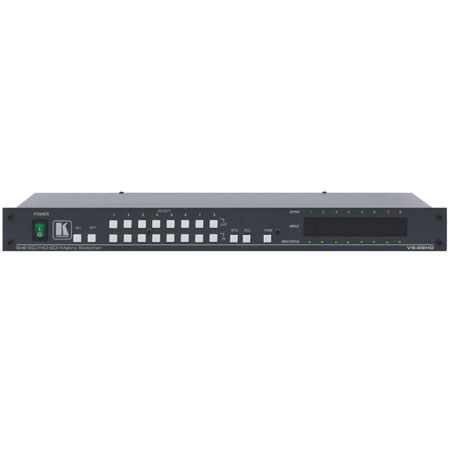

The Kramer VS-88HD is a high-performance matrix switcher for SD-SDI (SMPTE 259M and SMPTE 344M) and HD-SDI (SMPTE 292M) signals. Switching is implemented during the vertical interval period according to the SMPTE RP-168 standard, when using synchronized digital video sources.
Kramer Electronics VS-88HD Features
- Max Data Rate - Up To 1.485Gbps
- Equalization - Automatic
- HDTV Compatible
- Switching Synchronization - Synchronize either to external reference or incoming video
- Active Input Reporting - Each input button on the front panel automatically lights up when the unit detects a video signal on that input
- Memory Locations - Store multiple switches as presets (salvos) to be recalled and executed when needed
- Take Button - Execute multiple switches all at once
- Control - Front panel, RS-232 (K-Router Windows-based software is included) and RS-485
- Looping Analog Sync Input - Bi-level or tri-level sync compatible
- Selectable Sync Signal Termination
- Vertical Interval Switching
- Front Panel Lockout
- Worldwide Power Supply - 100-240V AC
- Standard 19 - 1U. Rack "ears" included
