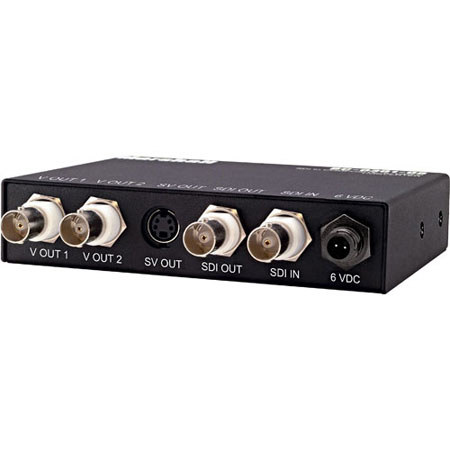

Marshall 10 Bit Wide Input SDI (ITU-R601) Digital to Analog Video (NTSC/PAL) Conversion Module with 12-bit Signal Processing.

Mfr. Part: BC030110     SKU: VDMABC030110

Marshall 10 Bit Wide Input SDI (ITU-R601) Digital to Analog Video (NTSC/PAL) Conversion Module with 12-bit Signal Processing.
enlarge image

Free Shipping view details

Product Rating Write a Review

Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.

Item Includes
Power Supply - Owners Manual

Description
· Marshall's cost effective BC-0301-10 digital to analog module can be configured for use in a variety of applications. The unit features to simultaneous Composite Video and S-Video D/A (10 bit) conversion. 4x over sampling provides superb analog images.

There is also a built in Color Bar Generator, System indicator (PAL/NTSC), and dipswitch settings for Pedestal (On/Off), UV Level Control (700ma/1000ma), Clamping Position (Front Porch/Back Porch), and Clamping Delay Position (Positive/Negative).

All Marshall Electronics Processing and Distribution modules include power supply and owners manual. An optional base holder (V-CB1) is available for use in desktop applications.

Features
Converts component serial digital signal to analog composite
Active loop through for SDI signal with re-clocking
Automatic Compensation for SDI input for cable length up to 1000'
Simultaneous outputs for 2 video and 1 Y/C (S-video)
PAL/NTSC auto detection with led indicator
Pedestal on/off selection for NTSC signals
10-bit processing with 4x over sampling
Supports closed captioning
Includes color bar generator
Includes Power Supply

Specifications
Serial Digital InputSDI (SMPTE-259M-C, ITU-R601)
Input Data Rate270 Mb/s
Serial Digital OutputBNC active loop through 0.8V p-p 75W
Input Return Loss<15db
Cable Length1000' max using Belden 8281 or equivalent
Analog OutputSimultaneous 2 Composite Video and 1Y/C outputs
Sample Frequency27Mhz
Power required6 V D.C. supplied from external power supply (included)
Dimensions4.75"W x 3.75"D x 1.0"H
Weight0.55 lbs
