Description

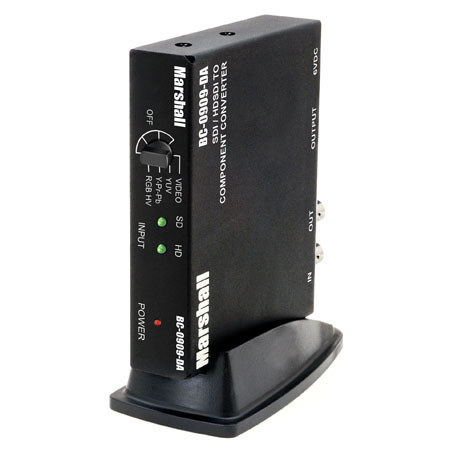

· Universal Digital converter for Analog HD (SMPTE-274M) YprPb, RGBHV to HDSDI or Analog Composite, Y/C, YUV, RGB to SDI with support of 480i, 480P, 720P, 1080 24P, 1080i formats. The Analog to Digital conversion in this module employs 10-bit sampling and data path with 2x over sampling of chroma and an adaptive filter process.
|
Features
 |
Converts Analog High Definition (SMPTE-260/274/296M) to Digital (HDSDI) |
|
Converts XVGA, SXGA and WXGA to Digital (HDSDI SMPTE-292M) |
|
Converts Analog Composite (PAL/NTSC) to Digital (SDI SMPTE-259M) |
|
Converts Y/C (S-Video) to Digital (SDI) |
|
End to end 10bit processing |
|
2x over sampling of Composite and Y/C signals |
|
Adaptive comb filter for noise reduction on composite and Y/C signals |
Specifications
| Signal to Noise | >57db |
| Dynamic gain/phase | <0.5% / 0.7° |
| Screen Formats | 640 × 480 - 50i, 59.97i, 60i
1280 × 720 - 23.97P, 24P, 25P, 29.97P, 30P, 59.96P, 60P
1920 × 1080 - 23.97P, 24P, 25P, 29.97P, 30P, 50i, 59.97i, 60i |
| Signal Output | BNC for HDSDI/SDI signals that conform to SMPTE-259M/292M |
| Signal Input | HD-15 (VGA, SVGA, XGA, SXGA, RGBHV, YUV, Y-Pr-Pb) 75W BNC for Composite Video (PAL/NTSC) 75ohm with AGC 4 pin Mini Din for Y/C Video (PAL/NTSC)75W with AGC |
| Dimensions | 7.75"W x 3.75"D x 1.0"H |
| Weight | 0.55 Lbs |
| | |
|
