Description

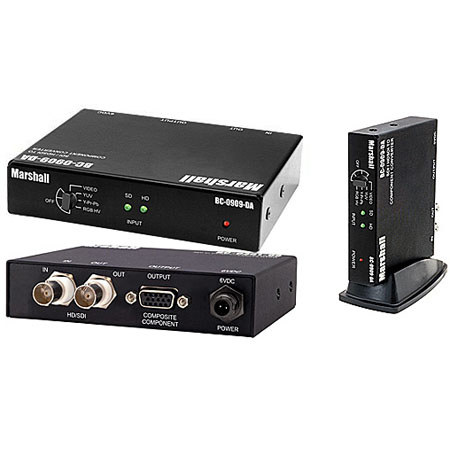

· Universal Digital converter for HDSDI to Analog HD (SMPTE-274M) YprPb, RGBHV or SDI to Analog Composite, Y/C, YUV, RGB with support of 480i, 480P, 720P, 1080 24P, 1080i formats.
The Digital to Analog conversion in this module employs 10-bit sampling and data path with 4x over sampling of chroma and an adaptive filter process.
All Marshall Electronics Processing and Distribution modules include power supply and owners manual. An optional base holder (V-CB1) is available for use in desktop applications.
|
Features
 |
Converts HDSDI to Analog High Definition RGB or Y-Pr-Pb |
|
Converts SDI to Analog Composite (PAL/NTSC) |
|
Converts SDI to Y/C (S-Video) |
|
Converts SDI to Analog Component RGB/Y, R-Y, B-Y/YUV |
|
PAL/NTSC auto detection with led indicator |
|
Active loop through for SDI signal with re-clocking |
|
Automatic detection range of 142Mb/s to 1.485Gb/s |
|
Automatic Compensation of SDI input for cable length up to 1000' |
|
10-bit processing with 4x over sampling |
Specifications
| Screen Formats | 640 × 480 50i, 59.97i, 60i
1280 × 720 23.97P, 24P, 25P, 29.97P, 30P, 59.96P, 60P
1920 × 1080 23.97P, 24P, 25P, 29.97P, 30P, 50i, 59.97i, 60i |
| Signal Input | BNC for HDSDI/SDI signals that conform to SMPTE-259M/292M |
| Signal Output | HD-15 ( RGBHV, YUV, Y-Pr-Pb) 75W BNC for Composite Video (PAL/NTSC) 75W with AGC |
| Output Standards | SMPTE-170M for SDI inputs / SMPTE-296 for HDSDI inputs |
| Signal to Noise | >57db |
| Dynamic gain/phase | <0.4% / 0.4° (Differential gain/phase <0.5% / 0.7°) |
| Dimensions | 4.75"W x 3.75"D x 1.0"H |
| | |
|
