Marshall Precision 4 Channel S-Video to Composite Converter

Mfr. Part: MC02014     SKU: VDMAMC02014

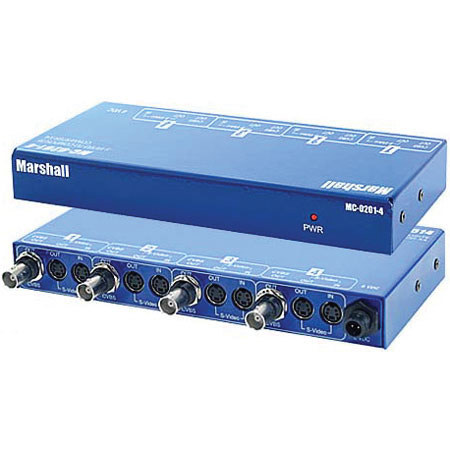

Marshall Precision 4 Channel S-Video to Composite Converter
enlarge image

Free Shipping view details

Product Rating Write a Review

Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.

Item Includes
Universal Voltage Power Supply

Description
· The MC-0201-4 S-Video to composite conversion module fills a void that has long existed in Professional and Multimedia applications. Until now, the only way to convert S-Video to composite was by using a very low quality passive device or expensive boxes that lacked in capability.

The MC-0201-4 is the only product of its type available, providing simultaneous conversion of 4 separate S-Video (Y/C) channels to composite video. The S-Video is processed and amplified for output to another device like a vision mixer or VCR.

Compare the features and price of the MC-0201-4 to similar devices and you will be pleasantly surprised. In most cases the MC-0201-4 provides 4 channels of conversion compared to other products providing only 1 channel at a similar price point. An optional base holder (V-CB1) is available for use in desktop applications.

Features
Compact design can be installed on the tabletop, wall mounted or placed into a standard 19" EIA rack using the optional V-CRM2 rack kit
Full bandwidth conversion of S-Video (Y/C) chrominance and luminance components to composite video
Four channels of conversion in each MC-0201-4. This is a perfect fit for use of S-Video signals with the Marshall Electronics 4 screen monitor set model V-R44P
Low Power consumption less than 10 watt
Operates from 6 Volt DC
Universal voltage power supply is included
S-Video signal loops out for use with downstream equipment like switcher, visionmixer, or VCR

Specifications
Signal InputY/C Video 4 pin Mini- din x 4 channels
Signal OutputComposite Video BNC Plus Y/C Video 4 pin Mini- din x 4 channels
K factor<1%
Signal to Noise>60 db
Dynamic gain/phase0.4% / 0.4°
Bandwidth>7mhz
Cable LengthUp to 100ft
Power required6 V D.C. supplied from external supply
Dimensions7.75"W x 3.75"D x 1.0"H
Weight1.15 Lbs
