Marshall 1 x 4 Video Distribution Amplifier for Longer Cable Runs. #MD0114EQ
Marshall

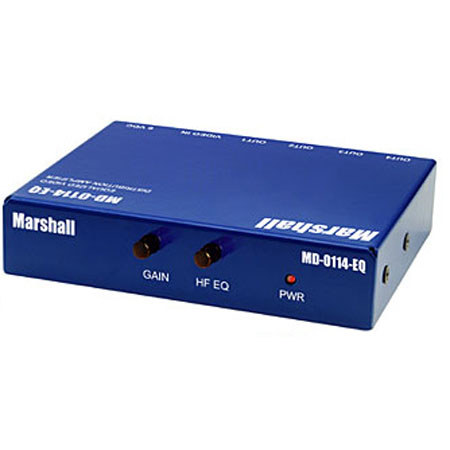

Marshall 1 x 4 Video Distribution Amplifier for Longer Cable Runs.

SKU: VDMAMD0114EQ MFR: MD0114EQ
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$139.95
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech SpecsAccessories

About this item


• Marshall's MD-0114-EQ Distribution Amplifier is a cost effective solution for applications that require compensation for longer cable runs. This module is also recommended for video signal distribution between image capture and playback or processing devices like camera, VTR, DDR, Editing or Graphics Computer, Video Switchers and Effects Engines.

All Processing and Distribution modules include power supply and owners manual. An optional base holder (V-CB1) is available for use in desktop applications.

Key Features

  • Convenient front panel adjustments of gain and high frequency equalization
  • Adjustments to compensate for cable runs up to 1000'
  • Self terminating 75ohm BNC input
  • 75ohm BNC outputs (4)
  • All connections in rear of module
  • Install in rack or use on the desktop

Technical Specs

Signal Input BNC connection of composite video - PAL or SMPTE
Signal Output 4 BNC
Frequency Response 5 to 20 Mhz (1v p-p to 2v p-p with 1v input signal)
K factor <1%
Signal to Noise >70 db
Dynamic gain/phase <1% / <1°
Power required 6 V D.C. supplied from external supply
Cable Length 1000' max using Belden 8281 or equivalent
Power required 6 V D.C. supplied from external supply
Differential gain/phase <1% / <1°
Dimensions 4.75"W x 3.75"D x 1.0"H
Weight 0.55 Lbs
