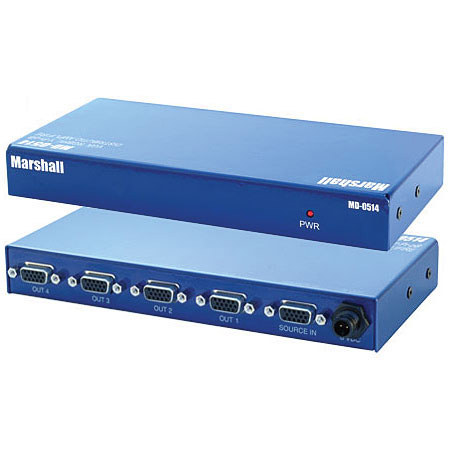

Marshall MD0514 Multi-Format 1 x 2 VGA Amplifier
Marshall

Marshall Multi-format 1 x 2 VGA Distribution Amplifier

SKU: VDMAMD0514 MFR: MD0514
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Power Supply
  • Users Guide
  • Rack Mount Brackets
  • Desktop Footpads
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$149.95
Qty:

Add to Wishlist
OverviewFeaturesTech SpecsAccessories

About this item


• The MD-0514-DA is a multiformat 1 x 4 distribution amplifier, with signal bandwidth up to 350 MHz. This module can be used with VGA, SVGA, XGA, UXGA signals. An optional HD15 to 5 BNC cable (RGB-5HD15-X) can be used for RGBHV, Y-Pr-Pb, YUV, RGB, Y/C and composite signals.

Supports screen formats up to 1920x 1080. The unit Includes power supply, owners manual and mount brackets. An optional base holder (V-CB1) and BNC Breakout Cables (RGB-5HD15-X) are available for use in desktop applications.

What's Included With This Item

  • Power Supply
  • Users Guide
  • Rack Mount Brackets
  • Desktop Footpads

Key Features

  • Includes module and power supply
  • Signal Bandwidth up to 350Mhz
  • Multiple applications
  • HD-15 Input Connection self terminating 75ohm
  • 2 HD-15 Output Connections self terminating 75ohm
  • 4 HD-15 Output Connections
  • All connections in rear of module
  • Install in wall or use on the desktop

Technical Specs

Signal Input HD-15 (VGA, SVGA, XGA, UXGA, RGBHV, YUV, Composite)
Signal Output 4 HD-15
Frequency Response 10 to 350 MHz
K factor <1%
Signal to Noise >70 db
Dynamic gain/phase <1% / <1°
Cable Length Cable Length, Y/C Delay: 250' (<3%/2°)
Power required 6 V D.C. supplied from external supply
Dimensions 7.75"W x 3.75"D x 1.0"H
Weight 1.15 lbs
