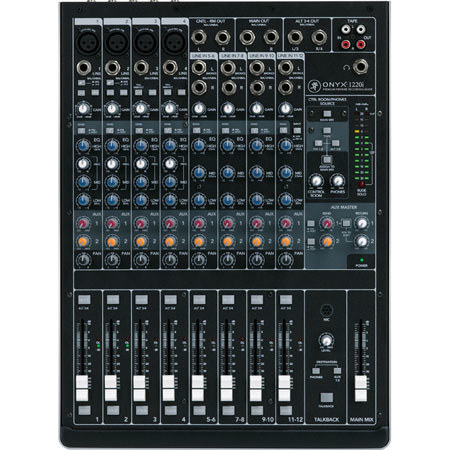

Mackie 12-Channel Premium Firewire Recording Mixer
Mackie

Mackie 12-Channel Premium Firewire Recording Mixer with Integrated 24-bit/96kHz FireWire I/O

SKU: VDMAONYX1220 MFR: ONYX 1220I
What's Included
What's Included With This Item:
  • Mackie 12-Channel Premium Firewire Recording Mixer
  • Power Cord
  • Tracktion 3 Software
  • Mackie Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$649.99
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The 12-channel Onyx 1220i delivers stunning performance in a size that is decidedly desk-friendly. Premium analog features like boutique-quality Onyx mic pres, smooth 60 mm channel faders and the proven tone-sculpting capability of Perkins EQ allows for performance that is unmatched in this category. The 16x2 built-in FireWire interface will simultaneously deliver all 12 channels, all auxes and the master L/R signal straight to your favorite DAW with zero routing. How easy is that? You can even return a couple of channels from the DAW right back into a channel strip for mix integration.

What's Included With This Item

  • Mackie 12-Channel Premium Firewire Recording Mixer
  • Power Cord
  • Tracktion 3 Software
  • Mackie Warranty

Key Features

  • 12-channel premium analog mixer with integrated 24-bit/96kHz FireWire I/O
  • Qualified by Mackie for use with all major DAWs, including: Pro Tools M-Powered 8 (Requires FREE driver upgrade download), Logic, SONAR, Cubase, Ableton Live, Final Cut Pro
  • 4 Onyx boutique-quality mic preamps
  • 3-band Perkins EQ with sweepable mids on mic/line channels
  • 3-band Perkins EQ on stereo line channels
  • 16 x 2 FireWire routing for simultaneous streaming of aux sends and pre/post EQ assignment for all channels
  • Stereo playback from DAW, returned to control room or into channel for integration into mix
  • Built-in DI on first two channels for direct connection of guitars, bass, etc
  • Individual 48V phantom power switches on all mic inputs
  • Talkback section with built in mic and flexible routing
  • "Planet Earth" switching power supply for worldwide use
  • Optional rack kit available
  • Includes Tracktion 3 Music Production Software for Mac or PC

Technical Specs

Total No. of Inputs 12
Mic/Line Inputs 4 x Microphone Inputs
4 x Stereo Line Inputs (channels 1 & 2 can be switched to Hi-Z instrument level)
Stereo Line Inputs 3-band Perkins EQ on stereo line channels
AUX Sends 2
AUX Returns 2 Stereo Returns
Inserts 4 x Channel Inserts
BUS (Group) Outputs None
2 Trk Master I/O 2 x Balanced XLR Outputs with Mic or Line-Level Output Button
ALT I/O 2 x TRS 1/4" Alt. Output
Stereo RCA Tape Input & Output
Monitor Outputs 2 x Balanced TRS 1/4in Control Room Outputs (with dedicated volume knob)
1 x Stereo 1/4in Headphone Output (with dedicated volume knob)
EQ Section 2 x 4-Band EQ with Mid Sweep
4 x 3-Band EQ (on stereo channels)
Solo/Mute Yes, on every channel
Channel Level Control 60mm Channel & Master Faders
Trim/Gain Control Rotary Knob
Phantom Power Yes, +48V (on every mic channel with individual buttons)
Metering 12-Segment LED Master Meter
2-Segment LED Meter On Every Channel
Frequency Response Mic input to any output with all gain stages at unity: +0/-0.5 dB, 20 Hz to 20 kHz
Stereo channel line input to any output with all gain stages at unity: +0/-0.5 dB, 20 Hz to 20 kHz
FireWire In & Out at 44.1 kHz: +/-0.5 dB, 20 Hz to 20 kHz, -3 dB at 21 kHz
FireWire In & Out at 96 kHz: +/-0.5 dB, 20 Hz to 20 kHz, -3 dB at 45 kHz
Total Harmonic Distortion (THD) 20 Hz to 20 Hz, 20 Hz to 80 kHz Bandwidth
Mic Input at Insert (+4 dBu in, 0 dB gain, +4 dBu out): 0.0015%
Power Supply Universal AC Power Supply, 100 VAC - 240 VAC, 50 - 60 Hz
Dimensions 16.75 x 12.25 x 3.85in / 420 x 310 x 96mm
Weight 13.5lbs / 6kg
Software Requirements: PC Microsoft Windows 7 32 / 64, Vista 32 / 64 RTM or XP SP 2
Pentium 4, Celeron or Athlon XP processor
512MB RAM
Software Requirements: Mac Mac OS X 10.4.11 - 10.6.4
G4 processor
512MB RAM
