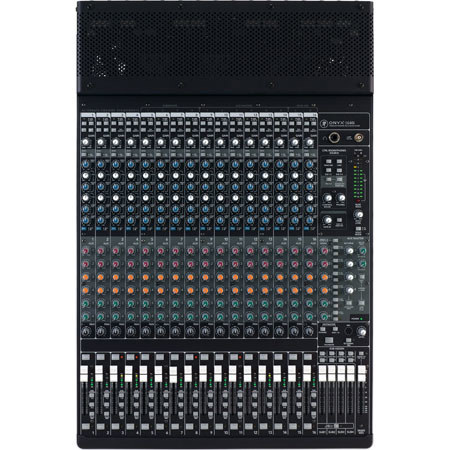

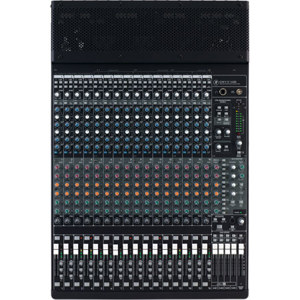

Mackie 16-Channl/4-Bus Premium Firewire Recording Mixer
Mackie

Mackie 16-Channel/4-Bus Premium Firewire Recording Mixer with Integrated 24-bit/96kHz FireWire I/O

SKU: VDMAONYX1640 MFR: ONYX 1640I
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
What's Included
What's Included With This Item:
  • Mackie 16-Channel/4-Bus Premium Firewire Recording Mixer
  • Power Cord
  • Rack Ears
  • Owner's Manual
  • Tracktion 3 Software
  • Mackie Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$1,599.99
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The 16-channel 1640i is the flagship mixer of the series featuring a full 16 mono mic/line channels each with 4-band dual sweep Perkins EQ, a whopping six aux sends each with pre/post and solo capability, 4 sub groups and a powerful master section. Despite its large channel count, the 1640i is compact, rack mountable and features renowned flexible RotoPod design, allowing the mixer to be housed in any configuration from custom studio furniture, live sound installs or even post production machine rooms.

The 1640i's full-featured 16x16 FireWire capability allows the user to route all channels, aux sends, sub groups and master L/R to their favorite DAW. However, the true power of the 1640i lies in its ability bring back the full 16 channels of FireWire output from your computer directly into the channel strips for a true tape style mix down. Plus, FireWire aggregation allows for connection of multiple 1640i's, providing the capability to record or mix down even the largest of sessions.

What's Included With This Item

  • Mackie 16-Channel/4-Bus Premium Firewire Recording Mixer
  • Power Cord
  • Rack Ears
  • Owner's Manual
  • Tracktion 3 Software
  • Mackie Warranty

Key Features

  • 16-channel premium analog mixer with integrated 24-bit/96kHz FireWire I/O
  • Qualified by Mackie for use with all major DAWs, including: Pro Tools M-Powered 8 (Requires FREE driver upgrade download), Logic, SONAR, Cubase, Ableton Live, Final Cut Pro
  • 16 Onyx boutique-quality mic preamps
  • 4-band Perkins EQ with sweepable mids on mic/line channels
  • Full 16 x 16 FireWire channel streaming for ultimate DAW integration
  • Flexible FireWire routing, including aux sends, groups and pre/post EQ assignment for all channels
  • 6 aux sends with pre/post assignment and solo
  • Smooth 60mm channel and master faders
  • Built-in DI on first two channels for direct connection of guitars, bass, etc
  • Individual 48V phantom power switches on all mic inputs
  • 4-segment metering on every channel
  • 4-bus architecture for flexible sub-grouping of channels
  • Talkback section for use with internal or external mic
  • Rotating I/O pod for desktop or rackmount operation - rack ears included
  • "Planet Earth" switching power supply for worldwide use
  • Includes Tracktion 3 Music Production Software for Mac or PC

Technical Specs

Total No. of Inputs 16
Mic/Line Inputs 16 x Microphone Inputs
16 x Line Inputs (channels 1 & 2 can be switched to Hi-Z instrument level)
AUX Sends 6
AUX Returns 4 Stereo Returns
Inserts 16 x Channel Inserts
Stereo Main Inserts
BUS (Group) Outputs 4 x Sub Group Outputs
2 Trk Master I/O 2 x Balanced XLR Outputs with Mic or Line-Level Output Button
Left & Right TRS Outputs
Mono TRS Output with +6 dB Knob
ALT I/O 2 x DB-25 connectors with a total of 16 post gain, pre-insert balanced outputs
Stereo RCA Tape Input & Output
1 x Balanced XLR Talkback Mic Input (with +48V phantom power)
Monitor Outputs 2 x Balanced TRS 1/4" Control Room Outputs (with dedicated volume knob)
1 x Stereo 1/4" Headphone Output (with dedicated volume knob)
EQ Section 16 x 4-Band EQ with a High Mid Sweep and a Low Mid Sweep
16 x EQ In/Out Button
Solo/Mute Yes, on every channel
Channel Level Control 60mm Channel & Master Faders
Trim/Gain Control Rotary Knob
Phantom Power Yes, +48V (on every mic channel with individual buttons)
Metering 12-Segment LED Master Meter
4-Segment LED Meter On Every Channel
Frequency Response Mic input to any output with all gain stages at unity: +0, -1 dB, 10 Hz to 80 kHz, +0, -3 dB, 10 Hz to 100 kHz
Stereo channel line input to any output with all gain stages at unity: +0/-1 dB, 20 Hz to 20 kHz
FireWire In & Out at 44.1 kHz: +/-0.5 dB, 20 Hz to 20 kHz, -3 dB at 21 kHz
FireWire In & Out at 96 kHz: +/-0.5 dB, 20 Hz to 20 kHz, -3 dB at 45 kHz
Total Harmonic Distortion (THD) 20 Hz to 20 Hz, 20 Hz to 80 kHz Bandwidth
Mic Input at Insert (+4 dBu in, 0 dB gain, +4 dBu out): 0.005%
Power Supply Universal AC Power Supply, 100 VAC - 240 VAC, 50 - 60 Hz
Dimensions 7.59 x 17.5 x 26.24in / 192.7 x 444.6 x 666.7mm
Weight 35lbs / 15.9kg
Software Requirements: PC Microsoft Windows 7 32 / 64, Vista 32 / 64 RTM or XP SP 2
Pentium 4, Celeron or Athlon XP processor
512MB RAM
Software Requirements: Mac Mac OS X 10.4.11 - 10.6.4
G4 processor
512MB RAM
