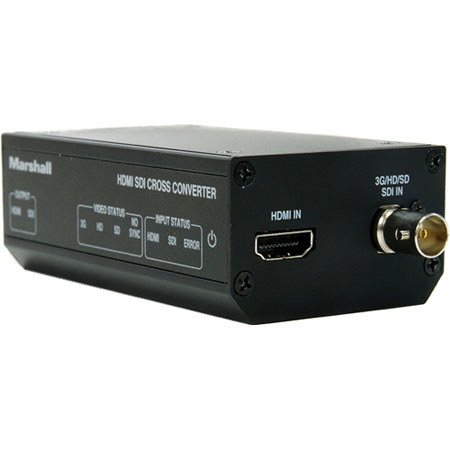

Marshall 3G-SDI to HDMI Cross Converter
Marshall

Marshall Portable Battery-Powered 3G-SDI to HDMI Cross Converter

SKU: VDMAORXDI MFR: OR-XDI
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$780.85
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The ORCHID OR-XDI is a rugged and portable battery-powered HDMI to 3G-SDI / 3G-SDI to HDMI cross converter. It allows an HDMI video signal to be converted from HDMI to 3G-SDI (with audio) to feed two other monitor sources on location. It can also be used to take the 3G-SDI output from production cameras to feed both the HDMI input of an external monitor while simultaneously feeding the 3G-SDI to other locations and equipment. The OR-XDI can be powered using a consumer-type 12V EIA power adapter, optional 4-pin XLR, or by using a wide variety of Marshall small battery mounts. This is the perfect tool for any director, camera operator, or production video village.

Key Features

  • Can be used with a 7.2V or 14.4V battery for operation
  • Rugged Metal Alloy case
  • 3G/HD/SD-SDI Input and Dual 3G/HD/SD-SDI Outputs
  • HDMI Input and Output
  • Dual size mounting holes (12 x 1/4-20 and 4 x M4)
  • EIA 12vDC External Power Jack
  • 4-pin XLR 12VDC Input available as an option
  • HDMI to SDI, SDI to HDMI conversion including Audio
  • Automatic input port switching
  • Automatic video format detection
  • Built-in SD format interlacer for DSLR while recording (480p to 480i conversion)
  • USB service port for future upgrade
  • Status LEDs indicate Link speed and status
  • 8 position piano switch for easy configuration. (input selection, auto mode, etc.)

Technical Specs

Input Formats Supported 480i60, 575i50, 480p60, 576p50, 720p60, 50, 30, 25, 24, 1080i60, 50, 1080p60, 50, 30, 25, 24
Output Formats Supported 480p60, 576p50, 720p60, 50, 30, 25, 24, 1080i60, 50, 1080p60, 50, 30, 25, 24
Audio Formats Supported 48KHz PCM Audio up to 8 channels from HDMI or embedded SDI
Power 5.5VDC-16VDC
Power consumption 3W (typ)
Case Material Alloy
Dimensions (W x D x H) 3.91 x 2.28 x 1.38" (9.93 x 5.79 x 3.5 cm)
Weight 0.475 lb (215 g) (without battery)
