Matrox MXO2 Mini with Thunderbolt Adapter
Matrox

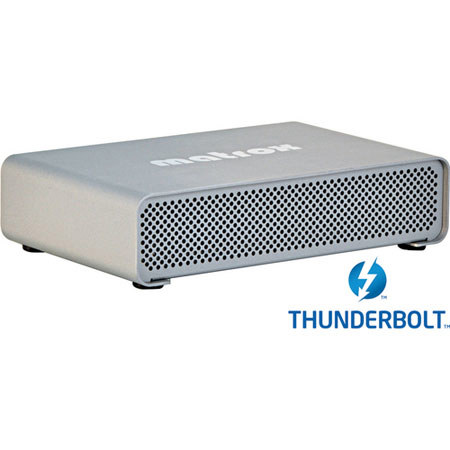

Matrox MXO2 Mini with Thunderbolt Adapter

SKU: VDMRMINIT MFR: MXO2MINI/T
What's Included
What's Included With This Item:
  • Matrox MXO2 Mini
  • MXO2 Thunderbolt Adapter
  • Multi-Pin Cable to Connect Thunderbolt Adapter to MXO2 Mini
  • Matrox MXO2 Mini External Power Supply
  • 2 x S-Video Adapters
  • Matrox Warranty
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$549.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

The MXO2 Mini (Thunderbolt) from Matrox is a device that combines the functionality of an HDMI & Analog I/O card in the form factor of a miniature breakout box. It will capture, convert and play multiple video formats, via its HDMI, composite, component, analog audio and S-Video inputs & outputs. And of course, this MXO2 includes a Thunderbolt adapter, which supplies the blazing-fast connection to a computer for a data transfer rate of up to 10 Gb/s.

This device's small footprint makes it easy to transport. You also benefit from a wide variety of HD and SD workflows with Adobe Premiere Pro and Final Cut Pro thanks to Matrox MXO2's 10-bit hardware up/down/cross-conversion scaling engine and support for a wide variety of file-based formats and industry-standard codecs. Moreover, its color-calibration tool can be used to turn your HDMI monitor into a professional-grade video monitor, so you can monitor your work in Avid Media Composer or NewsCutter, for instance.

What's Included With This Item

  • Matrox MXO2 Mini
  • MXO2 Thunderbolt Adapter
  • Multi-Pin Cable to Connect Thunderbolt Adapter to MXO2 Mini
  • Matrox MXO2 Mini External Power Supply
  • 2 x S-Video Adapters
  • Matrox Warranty

Key Features

  • Enjoy broadcast-quality HD/SD video and audio input/output. Capture & play back high-definition video via HDMI and analog component. Capture & play back NTSC and PAL via analog component, S-Video and composite
  • This model is designed for use Thunderbolt-enabled Macs
  • It features a small footprint and is easy to connect to cameras and monitors
  • Capture and play back high-definition video in multiple formats
  • Turn your HDMI screen into a professional-grade video monitor with color-calibration tools
  • A 10-bit hardware-based scaling engine allows for real-time up-, down- and cross-conversion upon capture and playback
  • This unit supports 5.1 and 7.1 surround-sound monitoring on the HDMI output
  • Edit AVCHD footage by capturing into an edit-friendly compressed or uncompressed format, or capture live video directly from your AVCHD camera's HDMI output, bypassing the compression entirely
  • It is compatible with your applications such as Apple Final Cut Pro & Color, Adobe Premiere Pro, After Effects & Photoshop, among others
  • Hardware acceleration of Final Cut Pro Dynamic RT segments, HDV and DVCPRO HD
  • 10-bit HDMI input, output and monitoring with the unique Matrox HDMI Calibration Utility
  • Matrox Vetura standalone application for convenient playback of your H.264 and .mov files

Technical Specs

Inputs Video: (1) HDMI HD 10-bit, (1) Component HD/SD 10-bit, (1) Y/C (S-Video) 10-bit, (1) Composite 10-bit
Audio: (2) RCA (unbalanced), (1) HDMI embedded up to 8 channels
Outputs Video: (1) HDMI HD/SD 10-bit, (1) Component HD/SD 12-bit, (1) Y/C (S-Video) 10-bit, (1) Composite 10-bit
Audio: (2) RCA (unbalanced), (1) HDMI embedded up to 8 channels
System Requirements Mac systems with a Thunderbolt port
Mac OS X 10.6 or later
One free Thunderbolt port (Thunderbolt devices can be daisy-chained; this is an endpoint device)
If using MXO2 Mini with Final Cut Studio 2, 2 GB physical memory (RAM) when working with compressed HD and uncompressed SD sources, or 4 GB physical memory (RAM) when working with uncompressed HD sources
HDMI monitor that supports 1920 x 1080 and "dot-by-dot" mode is recommended for 1:1 pixel mapping
Dimensions (H x W x D) MXO2 Mini box only: 6.5 x 4.6 x 1.5" (166 x 110 x 40mm)
Weight MXO2 Mini box only: 9.9 oz (280g)
