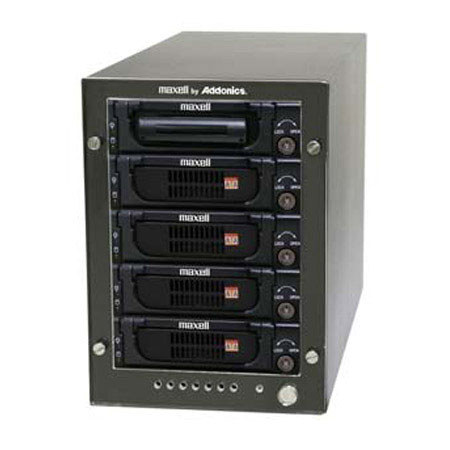

Maxell 5 Bay Storage Tower with 3 iVDR and 2 SATA Trays

SKU: VDMX261904 MFR: 261904

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Availability: Temporarily On Backorder Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. Notify me when in stock

Free Shipping

See all shipping options

Maxell 5 Bay Storage Tower: Picture 1 regular $539.59

About Maxell 5 Bay Storage Tower

Maxell 5 Bay Storage Tower installed in a combination of three iVDR-EX Cartridges and two 3.5" / 2.5" SATA tray. The Hard drives are installed into trays and can be easily added or removed, like a tape cartridge, from the system. A key lock inhibits unauthorized removal of any drive tray enclosure from the system for added security. The Storage Tower interfaces to computers via a built-in Hardware Port Multiplier (HPM) to form a large-capacity and high-performance external RAID system with redundancy to protect against data loss due to drive failure.

Once the HPM is configured, the entire RAID set can be attached to any eSATA or USB port of any system. The Storage Tower supports JBOD and standard RAID modes (0, 1, 3, 5 and 10) for data protection and redundancy. To ensure efficient cooling, the Storage Tower includes high capacity cooling fan(s) and two ventilated side panels. The side panels are easily removable to provide access for optional device configurations.

Maxell 5 Bay Storage Tower Features

  • Great for variety of storage applications - external RAID storage, Video storage, Server storage
  • Connect to any system via eSATA (connecting cable included) or USB port
  • Install either iVDR-EX cartridges, SATA hard drives or a combination of these devices in various mixes
  • iVDR-EX cartridge support is added or removed via the iVDR drive tray
  • Hard drives are installed into drive trays that can be added or removed like tape from each drive bay
  • Standard SATA drives and iVDR-EX cartridges can be configured to appear as individual drives to any system - requires connecting to a HPM compatible eSATA port or USB port
  • Drives and iVDR-EX cartridges can be configured for the RAID settings: Supports RAID-0 (Striping), RAID-1 (Mirroring), RAID-3, RAID-5 (Parity), RAID-10 (Mirrored Stripping), JBOD (Concatenation), Clone Mode (N-Way Mirror)
  • RAID configurable via bundled software utility for Windows OS or via onboard jumpers for other OS's
  • Once configured, the tower can be connected to any system running any OS (with the exception of individual drive setting that requires an HPM compatible controller)
  • Sturdy metal frame construction
  • RAID diagnostic via LED lights or the included monitoring software for Windows OS
