Maxell

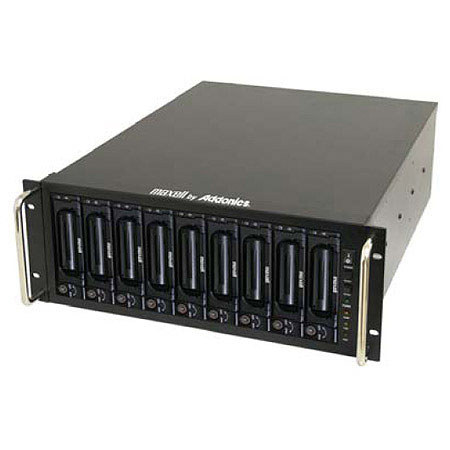

Maxell 9 Bay Storage Rack with 9 iVDR Trays

SKU: VDMX263000 MFR: 263000
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,712.32 $67 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the Maxell 9 Bay Storage Rack

Maxell 9 Bay Storage Rack comes installed with 9 iVDR-EX Cartridges tray. The Hard drives are installed into trays and can be easily added or removed, like a tape cartridge, from the system. A key lock inhibits unauthorized removal of any drive tray enclosure from the system for added security. The Storage Tower interfaces to computers via a built-in Hardware Port Multiplier (HPM) to form a large-capacity and high-performance external RAID system with redundancy to protect against data loss due to drive failure.

Once the HPM is configured, the entire RAID set can be attached to any eSATA or USB port of any system. The Storage Tower supports JBOD and standard RAID modes (0, 1, 3, 5 and 10) for data protection and redundancy. To ensure efficient cooling, the Storage Tower includes high capacity cooling fan(s) and two ventilated side panels. The side panels are easily removable to provide access for optional device configurations.

Maxell 9 Bay Storage Rack Includes

  • Maxell 9 Bay Storage Rack with 9 iVDR Trays
  • 3 Foot eSATA Cable
  • Maxell 1 Year Warranty

Maxell 9 Bay Storage Rack Features

  • Connect to any system via 2 eSATA
  • iVDR-EX cartridge support is added or removed via the iVDR drive tray
  • Hard drives are installed into drive trays that can be added or removed like tape from each drive bay
  • Standard iVDR-EX cartridges can be configured to appear as individual drives to any system - requires connecting to a HPM compatible eSATA port or USB port
  • iVDR-EX cartridges can be configured for the RAID settings: Supports RAID-0 (Striping), RAID-1 (Mirroring), RAID-3, RAID-5 (Parity), RAID-10 (Mirrored Stripping), JBOD (Concatenation), Clone Mode (N-Way Mirror)
  • RAID configurable via bundled software utility for Windows OS or via onboard jumpers for other OS's
  • Once configured, the tower can be connected to any system running any OS (with the exception of individual drive setting that requires an HPM compatible controller)
  • Sturdy metal frame construction
  • RAID diagnostic via LED lights or the included monitoring software for Windows OS

Maxell 9 Bay Storage Rack Specifications

No of Trays 9 iVDR Trays
Supported Storage Devices iVDR-EX Cartridge
Connection to System 2 - eSATA
Supported Operating Systems Connect to any system (OS independent)
90 x 90mm cooling fans 2
Construction Sturdy metal frame
Power Supply 500 Watts 110/220V input
Operating Temperature and Humidity 0deg.C - 50deg.C, 15% - 90% RH
Storage Temperature and Humidity 20% - 80%, 0% - 95% RH non-condensing
Dimensions (W x D x H) 19 x 20.1 x 7 inch / 48.26 x 51.05 x 17.78 cm
Weight 51 lb (23.13 kg)
