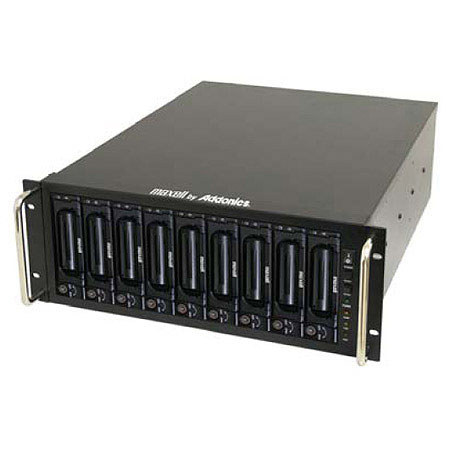

Maxell 9 Bay Storage Rack with 9 SATA Trays

Maxell
SKU: VDMX263001 MFR: 263001
Free Shipping

See all shipping options

Temporarily On Backorder - Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped. learn more / Notify when in stock

Our Price

$1,508.51
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Maxell : Picture 1 regular $1,508.51

About Maxell

Maxell 9 Bay Storage Rack comes installed with 9 SATA Hard Drive tray. The Hard drives are installed into trays and can be easily added or removed, like a tape cartridge, from the system. A key lock inhibits unauthorized removal of any drive tray enclosure from the system for added security. The Storage Tower interfaces to computers via a built-in Hardware Port Multiplier (HPM) to form a large-capacity and high-performance external RAID system with redundancy to protect against data loss due to drive failure.

Once the HPM is configured, the entire RAID set can be attached to any eSATA or USB port of any system. The Storage Tower supports JBOD and standard RAID modes (0, 1, 3, 5 and 10) for data protection and redundancy. To ensure efficient cooling, the Storage Tower includes high capacity cooling fan(s) and two ventilated side panels. The side panels are easily removable to provide access for optional device configurations.

Maxell Features

  • Connect to any system via USB port (connecting cables included)
  • Hard drives are installed into drive trays that can be added or removed like tape from each drive bay
  • Standard SATA drives can be configured to appear as individual drives to any system - requires connecting to a HPM compatible eSATA port or USB port
  • Drives can be configured for the RAID settings: Supports RAID-0 (Striping), RAID-1 (Mirroring), RAID-3, RAID-5 (Parity), RAID-10 (Mirrored Stripping), JBOD (Concatenation), Clone Mode (N-Way Mirror)
  • RAID configurable via bundled software utility for Windows OS or via onboard jumpers for other OS's
  • Once configured, the tower can be connected to any system running any OS (with the exception of individual drive setting that requires an HPM compatible controller)
  • Sturdy metal frame construction
  • RAID diagnostic via LED lights or the included monitoring software for Windows OS

Maxell Specifications

No of Trays
9 SATA Trays
Supported Storage Devices
SATA Hard Drive
Connection to System
USB 3.0 / 2.0 connection with USB 3.0 eSATAp adapter
Supported Operating Systems
Connect to any system (OS independent)
90 x 90mm cooling fans
2
Construction
Sturdy metal frame
Power Supply
500 Watts 110/220V input
Operating Temperature and Humidity
0deg.C - 50deg.C, 15% - 90% RH
Storage Temperature and Humidity
20% - 80%, 0% - 95% RH non-condensing
Dimensions (W x D x H)
19 x 20.1 x 7 inch / 48.26 x 51.05 x 17.78 cm
Weight
51 lb (23.13 kg)
Mfr #
263001
SKU
VDMX263001
