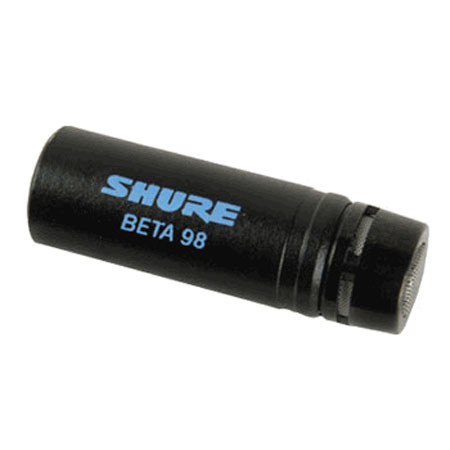

Shure BETA 98/S Miniature Super-Cardioid Condenser Instrument Microphone.
Mfr. Part: BETA98S SKU: VDSHBETA98S
enlarge image
|
|
 |
|
|
|
Item Includes
Storage Bag 26B21 - Preamplifier RPM626 - Shock-Mount Swivel Adapter (BETA 98/S) RK282 - 7.6 m (25 ft) light-weight cable (BETA 98/S) 90A4697
|
Description
The Shure BETA 98/S is a compact, high-output, supercardioid condenser microphone for professional sound reinforcement and studio recording. Its extremely uniform supercardioid pickup pattern provides high gain before feedback and excellent rejection of unwanted noise.
Its high maximum sound pressure level (SPL) makes it useful for a variety of acoustic instruments, including drums, percussion, piano, reed, wind, and string instruments. The BETA 98/S can also be used for amplified guitars.
The BETA 98/S includes either a shockmount swivel adapter (BETA 98/S) or the A98D drum mount (BETA 98D/S). The A98D drum mount has a specially designed gooseneck that allows the microphone to be positioned freely, yet holds it securely in place once the ideal placement has been found.
The BETA 98/S is supplied with a windscreen, storage bag, preamplifier, and an interconnect cable. The preamplifier can be powered by any 48 Vdc phantom power supply.
|
Features
 |
Tailored frequency response for studio quality performance |
|
Wide dynamic range for use in high SPL environments |
|
Uniform supercardioid pattern for high gain before feedback and superior rejection of off-axis sound |
|
Optional A98D drum mount is unobtrusive and versatile— allows precise positioning of the microphone while holding it firmly in place |
|
Compact design reduces stage clutter |
|
Detachable cable for easy storage |
|
Interchangeable microphone cartridges with different polar patterns are available |
|
Legendary Shure quality, ruggedness, and reliability |
Specifications
| Type | Condenser (electret bias) |
| Applications | Tom-Toms, Snare Drum, Hi-Hat Cymbals, Reed Instruments, Guitar Amplifier |
| Frequency Response | 20 to 20,000 Hz |
| Polar Pattern | Supercardioid (as supplied), uniform with frequency, symmetrical about axis. Cartridge for cardioid polar pattern also available. |
| Impedance | Output Impedance Rated at 150 ohms actual. Recommended minimum load impedance: 1 k ohms |
| Output Level | At 1,000 Hz: Open Circuit Voltage -59 dBV/Pa* (1 mV) typical (1 Pa = 94 dB SPL)
Maximum SPL (20 Hz to 20 kHz, less than 1% THD) 2.5 k ohms load 160 dB 1 k ohms. load 156 dB
Preamplifier Output Clipping Level (20 Hz to 20 kHz, less than 1% THD) 2.5 k ohms load + 6 dBV (2.0 V) 1 k ohms load + 2 dBV (1.26 V) Dynamic Range (at 20 Hz to 20 kHz, less than 1% THD, 2.5 k ohms load) 125 dB (max SPL minus A-weighted noise)
Output Noise
35 dB SPL, A-weighted |
| Connector | Cable BETA 98/S: 7.6 m (25 ft) light-weight, two-conductor shielded, TA4F to TA3F mini connectors. |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Case: Microphone: Matte black enamel brass case and stainless steel inner grille. Preamplifier: Matte black enamel finished steel |
| Dimensions | Microphone: 11.7 mm X 35.6 mm (0.46 in. X 1.40 in.)
Preamplifier: 20 mm X 99 mm (0.79 in. X 3.89 in.) |
| Weight | Microphone: 12 g (0.4 oz) less cable
Preamplifier: 96 g (3.4 oz) |
| Power Requirements | Phantom Power 48 Vdc ±4 Vdc(IEC-268-15/DIN 45 596), positive pins 2 and 3.
Signal-to-Noise Ratio 59 dB re 94 dB SPL
Hum Pickup -7.5 dB equivalent SPL in 1 mOe field (60Hz) |
| | |
|
|
|
|
|
|
|
|
|
|
