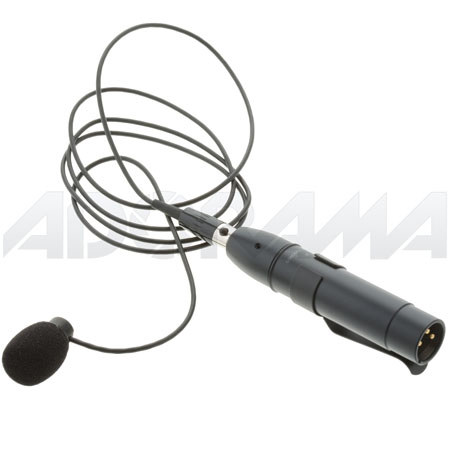

Shure MX184 Super-Cardioid Wired Condenser Lavalier Microphone.

Mfr. Part: MX184     SKU: VDSHMX184

Free Shipping view details

Product Rating Write a Review

Item Includes
Rotatable Tie-clip - Dual Tie-clip - Snap-fit Foam Windscreen - Belt Clip Preamplifier

Description
Looks Great... Sounds Better... The Microflex Lavaliers... They're no bigger than a paper clip unless you consider the sound they produce. The Microflex Lavalier microphones bring a new level of sophistication to personal voice reproduction.

Like all Microflex family microphones, the Lavaliers use Shure's interchangeable condenser cartridges, available in cardioid, supercardioid or omnidirectional polar patterns. That means you can be sure there's a Microflex Lavalier that's right for your job. Each Microflex Lavalier includes all the accessories you need:

The Microflex Lavaliers are completely compatible with all Shure Wireless transmitters, and their high sensitivity and w ide frequency response guarantee great sound with a minimum of RF interference or electromagnetic hum.

Plus, each Microf lex Lavalier features the same Shure quality sound that has become an industry standard. But don't take our word for it. Just listen, and you'll hear how the best solution just got better.

Features
Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
Interchangeable cartridges that provide an optimal choice for each application
Rotatable tie-clip that pivots in 90 degrees increments for placement flexibility
Supplied snap-fit foam windscreen that controls breath noise and stays on securely
Balanced, transformerless output for increased immunity to noise over long cable runs
Supplied dual tie clip holds two microphones for dual miking applications

Specifications
TypeCondenser (electret bias)
ApplicationsT.V & Broadcasting, Radio, Videography
Frequency Response50 to 17,000 Hz
Polar PatternSupercardioid
ImpedanceEIA rated at 150 ohms (180 ohms actual)
Output LevelOpen Circuit Sensitivity (at 1 kHz, ref. 1V/Pascal*) (*1 Pascal = 94 dB SPL) MX183: 27.5 dB (42.2 mV)/ MX184: 33.5 dB (21.1 mV)/MX185: 35.0 dB (17.0 mV)
Max SPL (1kHz at 1%THD, 1 k ohms load)MX183: 116.7 dB / MX184: 122.7 dB / MX185: 124.2 dB
Equivalent Output Noise (A-weighted)MX183: 20.5 dB / MX184: 26.5 dB / MX185: 28.0 dB
Signal to Noise Ratio (referenced at 94 dB SPL)MX183: 73.5 dB / MX184: 67.5 dB / MX185: 66.0 dB
Dynamic Range at 1 k ohms load: 96.2 dB
ConnectorXLR 3M
PolarityPositive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
DimensionsMicrophone Housing: L x W .85" x .46" / 22 x 12mm
Pre-Amp: 3.89"x .79" / 99 x 20mm L x Diameter
Weight.12 oz. / 3.4 gr
Power RequirementsPower Requirements 11 to 52 Vdc phantom, 2.0 mA, preamp clip included
