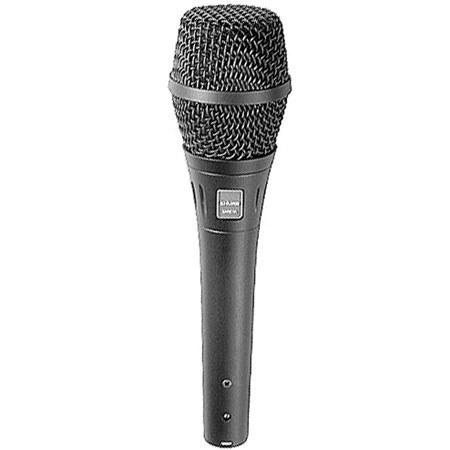

Shure SM87A Super-Cardioid Condenser Handheld, Vocal, Wired Microphone.
Mfr. Part: SM87A SKU: VDSHSM87A
enlarge image
|
|
 |
|
|
|
Item Includes
Swivel Adapter A25D - Carrying/Storage Bag 26A13
|
Description
The Shure SM87 now features a new design and has been renamed the SM87A. In response to user requests, Shure has redesigned this microphone by just slightly thickening the handle for a more comfortable feel. In addition, the SM87A now includes the A25D break-resistant swivel adapter.
A favorite choice of the world's top entertainers, the SM87A condenser microphone features a smooth frequency response that's specifically tailored for warm, rich, vocal reproduction.
The Shure Model SM87A is a professional-quality, handheld condenser microphone for use in sound reinforcement, broadcasting, and studio recording installations. Its supercardioid polar pattern provides greater rejection of unwanted sound sources, making it ideal for miking individual instruments in a multi-microphone setting or for miking single sources in a reverberant or noisy environment.
The SM87A features a controlled low-frequency roll-off tailored for optimum performance when close-miking sound sources. An integral three-stage wind and pop filter protects against wind and breath noise. Its built-in shock mount reduces stand and handling noise. The SM87A operates on phantom power.
|
Features
 |
Tight polar pattern for high gain-before-feedback and rejection of unwanted sounds |
|
Effective three-point shock mount minimizes stand and handling noise |
|
Phantom power operation |
|
Supercardioid condenser |
|
Supplied with break-resistant swivel adapter |
|
Frequency response: 50 to 18,000 Hz |
Specifications
| Type | Cartridge Type Condenser (electret bias) |
| Applications | Broadcast and Studio - Sound Reinforcement |
| Frequency Response | 50 to 20,000 Hz |
| Polar Pattern | Supercardioid |
| Impedance | Rated at 150 ohms (100 ohms actual ±20%) Recommended minimum load impedance: 800 ohms |
| Output Level | Sensitivity (at 1,000 Hz) Open Circuit Voltage 52.5 dBV/Pa (2.4 mV) (1 Pa = 94 dB SPL)
Clipping Level (at 1,000 Hz) 1000 ohm Load 6 dBV (0.5 V)
Maximum SPL (at 1,000 Hz) 140.5 dB (0.25% THD, 1000 ohm load)
Self-Noise (equivalent sound pressure level; measured with true rms voltmeter) 24 dB typical, A-weighted 26 dB typical, weighted per DIN 45 405 |
| Connector | Threepin (XLR) professional audio |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Dimensions | 50.8 mm / 2 in. top, 192 mm / 7-9/16 in. length, 21 mm / 23/64 in., handle |
| Weight | 200 grams (7 oz) oz. |
| Power Requirements | Phantom Supply Requirement 11 to 52 Vdc, positive at both pins 2 and 3
Current Drain 1.0 to 1.2 mA |
| | |
|
|
|
|
|
|
|
|
|
|
