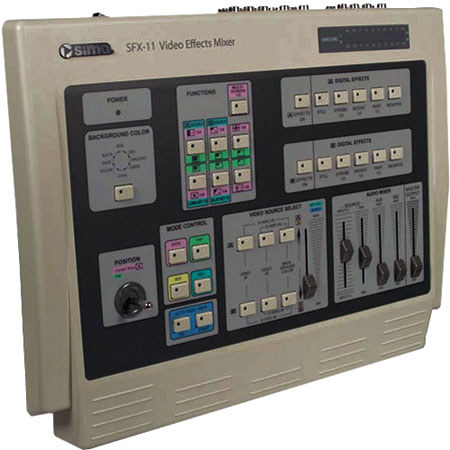

Sima SFX-11 Digital Video Effects Mixer for Linear Editing.

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price


Add to Wishlist In Stock

Protect your investment

About the Sima SFX-11

Sima's SFX-11 Digital Video Effects Mixer, provides quality mixing options and results without professional studio prices. Digital signal processing keeps down "noise" while producing vibrant colors and crystal clear picture quality. Digital effects (strobe, mosaic, paint), picture-in-picture, wipe patterns, chroma key and lumakey are just a few of the special effects options this unit offers.

Sima SFX-11 Includes

  • SFX-11
  • Video grabber for digitizing/recording to PC
  • Left-Right Audio Input Cable (3.5mm)
  • Software (ArcSoft Total Media, ArcSoft Media Converter)
  • USB Cable
  • Manual

Sima SFX-11 Features

  • Digital Effects - Use strobe, mosaic, paint, still and negative effects to maximize the impact of your images on both A and B channels. Select the size and position of special effects areas with joystick accuracy.
  • Picture in Picture - Create PIP windows and use the joystick to move location on the screen. The joystick moves PIP windows to any location.
  • Wide Range of Wipe Patterns - Circle, bar, cross-hatch, corner and wedge wipes along with fade to black and fade to white effects. You can pre-set the speed of wipes and fades for one-touch automatic control.
  • Chroma Key (Blue Screen) and Luma Key (Weather Map)- Use the chroma key (blue screen) or the luminance key (black screen) to isolate images and superimpose onto other scenes.
  • 4 Inputs - two audio/video inputs and two S-Video inputs give editorial fl exibility and increase options.
  • Digitize - use the included grabber to digitize/ record your edited video to a PC.
  • Video Grabber at a Glance:
  • USB 2.0 connection - Composite and S-video inputs - 3.5mm Stereo Audio input - ArcSoft Total Media - ArcSoft Media Converter - Record Direct to HDD & DVD - Recording compression Mpeg 2 - Mpeg 4, AVI and more - Time Slip Capability - Creates iPod capable video

Sima SFX-11 Specifications

Source Input Video Input: (x 2) - 1.0Vp-p 75Ù NTSC-( PAL ) composite signal, RCA Jacks - S-video Input: (x 2) - Y signal: 1.0 vp-p 75Ù - C signal: 0.3Vp-p 75V, Mini Din 4-pin connector - Audio Input: L + R (x 2) - -6dBs/20kÙ RCA Jacks (L/R)
External Sound Input MIC input: x 1 (MIC); -6dBv/600 ohm - 1/4" jack - AUX input: x 1 (AUX); -6dbs/20k ohm, RCA Jacks (L/R)
Recording Output Video Output: (x 2) - 1.0Vp-p 75 ohm NTSC-( PAL ) composite signal, RCA Jacks - S-video Output:(x 2) - Y signal: 1.0 vp-p 75 ohm - C signal: 0.3Vp-p 75V, Mini Din 4-pin connector - Audio Output: -6dBs/1 k ohm RCA Jacks (L/R)
Headphone Output (Headphone); -20dBv~ -80dBv, 8 ohm unbalance, 1/8" jack
Effects Video: Still, Strobe, Mosaic, Negative, Wipe, Mix, Fade, Picturein- Picture, Chroma key, Luminance key
Back color White, Yellow, Cyan, Green, Magenta, red, Blue, Black
Wipe patterns 96 patterns
S/N (typical) Video: 48 dB (composite), 50dB (Y/C) Audio: 60 dB
Power Source 120V (240 AC)
Power Consumption Approximately 15W
Dimensions 15.5" (W) x 11.3" (L) x 2" (D)
Weight 4 lbs. 13 oz.
Monitor Output Monitor output (x 4) One for each input - Video Output: 1.0Vp-p 75 ohm composite signal, RCA Jacks
