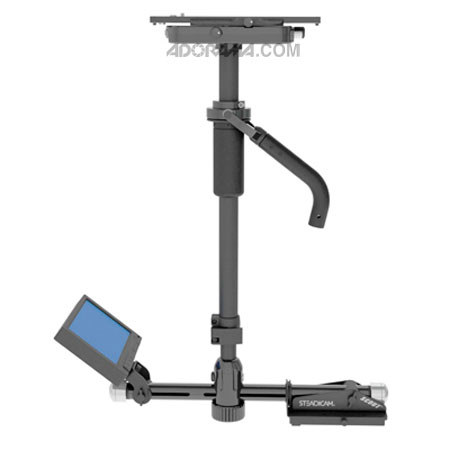

Steadicam Scout System with Standard Vest, and V-Mount
Steadicam

Steadicam Scout System with Standard Vest, NTSC/PAL Standard Definition Monitor and IDX V-Mount

SKU: VDSSCBXSDBVF MFR: SCBXSDBVFA
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$6,899.00
Free shipping
Qty:

Add to Wishlist

About this item

The Steadicam SCBXSDBVFA Scout vest is a continuation of the comfortable Flyer vest. An ergonomic fit of the breast plate combined with solid metal shoulder fasteners assure a new comfort level for extended use and a secure fit. New vest and pad covers are easily removed for cleaning or replacement offering extended durability.

The new tools-free patented Iso-elastic stabilizer arm supports 18 pounds (8kg) of camera weight. The no-tools Arm/Vest interface allows for quick customization to the individual operator. "On the fly" weight adjustment frees the operator from dismounting the system to make changes. The open design of the arm has freedom of movement unknown in this weight class and the Scout's adjustable and interchangeable arm post assembly is a feature usually found on more expensive systems. The 2-section arm can also be separated for compact storage and transport.

The new 7" Scout Steadicam color LCD monitor features enhanced image quality and a wide viewing angle. Even under bright sunlight this monitor is ideal for field production use. The Scout light weight aluminum dovetail stage was designed for camera mounting stability.

What's Included With This Item

  • Steadicam Camera Mounting Chassis (Sled) with Removable Base
  • Telescoping Centerpost with Large-Diameter Delrin Knurled Gimbal Handle
  • Color LCD Monitor
  • 5lb. to 18lb. Camera Capacity Iso-Elastic Arm
  • Standard Vest
  • Battery Mount (IDX V-Mount)
  • Docking Bracket
  • 12V Power Cable
  • 3 ft. Light Weight BNC Video Cable
  • Dovetail Plate
  • 5/32" T-Handle Allen Wrench
  • Soft Case
  • BNC to RCA Adaptor
  • RCA to BNC Adaptor
  • EFP Instructional DVD
  • Owner's Manual
  • Steadicam Warranty

Key Features

  • 5-18 lb. (2.3 - 8kg) camera payload capacity
  • No-tools adjustable Iso-Elastic arm
  • Dual axis vernier adjustable stage
  • Unparalleled inertial control and dynamically adjustable base
  • Standard composite BNC video input connector and RCA output connector
  • Standard 3-pin LEMO power in/out connectors on the base and stage
  • Rigid aluminum monitor/battery rod easily adjusts for quick set-ups and is easily removable for compact storage or transport
  • Single knob rod release for quick set-ups
  • Independently adjustable battery and monitor mounts for dynamic balance adjustability
  • Tilting and rotationally indexed monitor mount
  • Inertial control and adjustability via standard Steadicam Merlin type balance weights
  • Balance control via standard 1/4-20 mounting hole at the base of the sled and additional balance weights
  • Anton Bauer or V-lock battery compatible
  • Telescopic, indexed carbon fiber main post with internal safety line
  • Standard 7" composite LCD
  • No tools post clamp
  • Knurled gimbal grip with ergonomic handle
  • Rigid low profile aluminum frame XY vernier stage
  • Drop in standard dovetail plate design with fore-aft safety stops

Technical Specs

Camera payload capacity 5-18 lb. (2.3 - 8kg)
Power Cable 12V
Video cable BNC (3 ft. )
Wrench 5/32" T-Handle Allen
