VariZoom VZCS1LK Dual System Remote Multi-Camera Control Station with 2 MC100 Pan/Tilt Heads, VZ-Rock Zoom/Focus/Record Control, 7" Monitors & CS1 Frame

SKU: VDVZCS1LKD MFR: VZ-CS1LK-DUAL
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$5,199.95
Free Shipping
Qty:

Add to Wishlist

About the VariZoom VZCS1LK

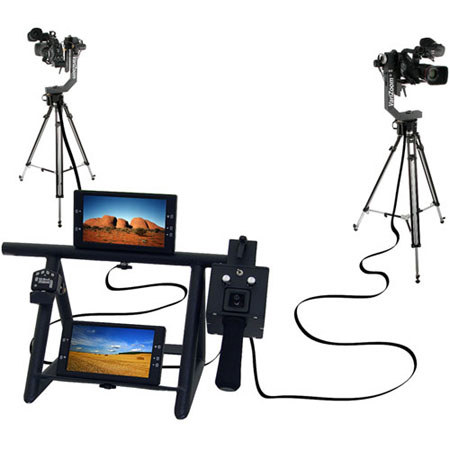

The VariZoom VZ-CS1LK is a package designed for assisting the control of multiple cameras at once. The kit contains two pan/tilt heads, the VZ-Rock zoom/focus/record controller, two 7" field viewing monitors and a CS1 station frame. The package provides a total solution for event videography including weddings, concerts and sporting events.

VariZoom VZCS1LK Includes

  • VariZoom 2 x VZ-MC100 Pan/Tilt Heads
  • VZ-Rock Camera Control
  • 2 x VZ-TFT-7 16:9 LCD Viewing Monitor
  • VZ-CS1 Control Station
  • VariZoom 1 Year (VZ-MC100) and 2 Years (VZ-Rock) Parts & Labor Warranty

VariZoom VZCS1LK Features

  • VZ-MC100 Pan and Tilt Control System: The VZ-MC100 Pan and Tilt control system for all camcorders up to 20 lbs. VariZoom has created a brand new lightweight and extremely portable remote head, weighing only 8 lb. The VZ-MC series pan and tilt heads allow for remarkably fast set-ups.
  • VZ-Rock: The Varizoom VZ-Rock is a LANC camera controller featuring all the same functions as Varizoom's ever-popular Stealth-LX series controller, with some enhancements such as a pressure-sensitive side-to-side rocker switch.
  • VZ-TFT-Z: The VZ-TFT-7 monitor serves two valuable purposes for the serious videographer. First, it functions as an external video display, allowing the shooter to step back from the camera while recording

VariZoom VZCS1LK Specifications

VZ-MC100 Max Operating Distance 500'
VZ-MC100 Power Requirements 12V 1.5A Minimum (up to 48V)
VZ-MC100 Construction Aluminum (powder-coated), Stainless Steel, Delrin
VZ-MC100 Components List Head w/ internal composite video & LANC wiring; Control Box w/ jib clamp (1.0625" dia.); 2 Custom-geared motors; AC/DC adapter; 20' Extension cables for head control, video & LANC; Mounting hardware for cameras, tripods & jibs; Carrying case w/ custom die-cut foam insert; Manual.
VZ-MC100 Returns 15% restocking fee
VZ-Rock Material ABS
VZ-Rock Compatibility Sony & Canon LANC equipped Camcorders, XL-1s and older models.
VZ-TFT-7 Video System NTSC and PAL compatible (autoswitch)
VZ-TFT-7 Resolution 1440 x 234 pixels / 480 x 240 lines
VZ-TFT-7 Screen Size 7" Diagonal 16:9 AR
VZ-TFT-7 Active Area 6.12" w x 3.45" h
VZ-TFT-7 Luminosity 250 nit TYP
VZ-TFT-7 Viewing Angles 30/60/60/60 (Top/Bottom/L/R)
VZ-TFT-7 Picture Adjustments Color, Brightness, Contrast, Tint
VZ-TFT-7 Aspect Ratio Modes Full, Normal, Wide, Zoom 1 & 2
VZ-TFT-7 Inputs RCA video, 2.1mm DC input (center +)
VZ-TFT-7 Video Signal Input 1V p-p (positive) 75 ohm
VZ-TFT-7 Power Consumption 10W Max
VZ-TFT-7 Operating Conditions 32-140F, 85% Max Humidity
VZ-CS1 Material Aluminum with matte black coating
VZ-CS1 Compatibility Designed for use with VZ-MC100 remote control, VZ-TFT and VZ-TFT7 monitors and all Varizoom Lens controls.
VZ-MC100 Head Dimensions H 22" x W 11" x D 5"
VZ-MC100 Case Dimensions L 32" x W 17.5" x H 13"
VZ-Rock Width 2"
VZ-Rock Length 2.75"
VZ-Rock Max Clamp Diameter 1.25"
VZ-Rock Cord Length 40"
VZ-TFT-7 Dimensions 7.6" W x 4.17" H x 0.98" D
VZ-CS1 Width 18 in.
VZ-CS1 Depth 12 in.
VZ-CS1 Height 10.5 in.
VZ-MC100 Head Weight 8.5 lbs
VZ-MC100 Max Camera Weight 30 lbs
VZ-CS1 Weight 0.25 lb.
VZ-TFT-7 Weight 0.84 lb
VZ-Rock Weight 0.25 lb.
Warranty VariZoom 1 year (VZ-MC100) and 2 years (VZ-Rock) parts & labor warranty
