| Projector Display System |
Single 0.55" DLP Technology by Texas Instruments |
| Native Resolution |
Native Resolution: XGA (1280 x 800) Max. Resolution: UXGA (1600 x 1200) Uniformity: 85% |
| Number of Pixels |
1280 x 800 = 1,024,000 |
| Brightness |
3200 Lumens (Typical) |
| Contrast Ratio |
3000:1 (Full On/Off) |
| Aspect Ratio |
16:10 Native, 4:3, 16:9 Compatible |
| Colors |
1.07 Billion |
| Scan Rate |
Horizontal Scan Rate: 15, 30 to 90 KHz Vertical Scan Rate: 43 to 85 Hz |
| System |
NTSC/NTSC 4.43, PAL B/G/H/I/M/N 60, SECAM |
| Computer Compatibility |
UXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible |
| HDTV Compatibility |
3D Video Compatibility: SDTV (480i), EDTV (480p), HDTV (720p), 2.35:1 2D Video Compatibility: SDTV (480i, 576i), EDTV (480p), HDTV (720p, 1080i/p) |
| Lens |
F = 2.52 - 2.72, f = 21.35 - 24.49mm |
| Focus/Zoom Adjusting |
1.16:1 Manual Zoom/Focus |
| Lens Offset |
128% |
| Throw Ratio |
1.52 to 1.76:1 (Distance/Width) |
| Image Size |
31 to 300" (1.0 to 7.6 m) |
| Recommended Projection Size |
3.9 to 32.8' (1 to 10 m) |
| Keystone Correction |
±30deg. Vertical |
| Ceiling Mountable |
Yes |
| Rear Screen Projection |
Yes |
| Projection Tilt Option |
Yes |
| Built-in Speaker |
2W |

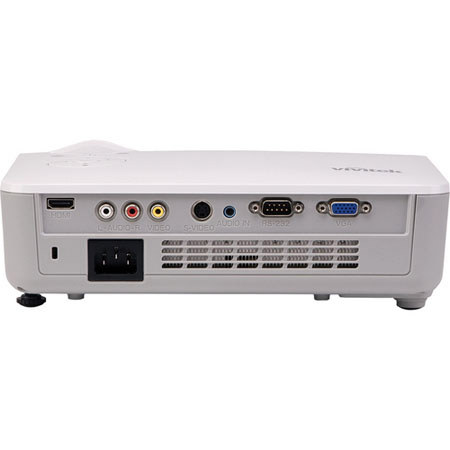

| Inputs/Outputs |
HDMI v1.3, VGA-In, Composite Video, S-Video, Mini-Jack Audio-In, RCA Stereo Audio-In, RS-232c |
| Lamp (Bulb) |
3000/4000 Hours (Standard/Economy Mode), 180W |
| Fan Noise |
31dB/28dB (Standard/Economy Mode) |
| Security |
Kensington Lock Port |
| Remote Control |
Card-Type IR Remote |
| Power Requirements |
Supply: AC 100 - 240V, 50/60Hz Consumption: 205W (Economy Mode), 230W (Standard Mode), <1W (Standby Mode |
| Operating Temperature |
41 to 104deg.F (5 to 40deg.C) |
| Dimensions (W x H x D) |
10.3 x 3 x 7.5" (261 x 78 x 190mm) |
| Weight |
4.2 lb. (1.9kg) |
