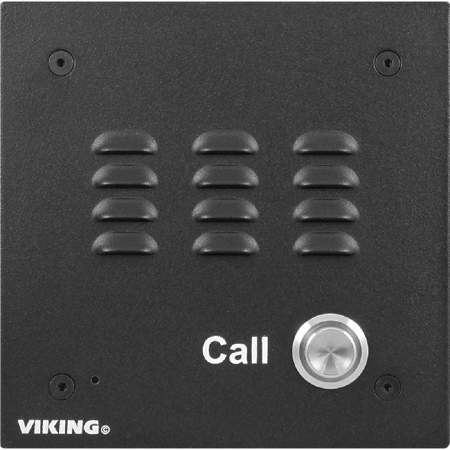

Viking Electronics E-10A-EWP Handsfree 2-Way Speaker Phone with Enhanced Weather Protection, Vandal-Resistant

Viking Electronics
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Viking Electronics E-10A-EWP

The Viking E-10A-EWP shares all features of the E-10A in addition to Enhanced Weather Protection (EWP) for outdoor installations where the unit is exposed to precipitation or condensation. EWP products feature foam rubber gaskets and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming.

Viking Electronics E-10A-EWP Features

  • Alternate action call button to place or cancel a call
  • Intelligent call progress detection for automatic hangup on CPC, silence, busy signal, or time out
  • Telephone line powered
  • Weather resistant features: mylar speaker, gaskets, internally sealed push button switch, UV stable exterior, enamel coated PCB
  • IP66 Ingress Protection Rating
  • E-10A-EWP is designed to meet IP66 Ingress Protection Rating
  • Adjustable microphone and speaker volume
  • Programmable maximum call length
  • Vandal resistant, black powder painted, aluminum face plate with heavy duty 316 stainless steel call button and mounting gasket
  • Flush mountable using included plastic rough-in box part # 259576
  • Surface mount with optional VE-5x5
  • Selectable auto-answer feature allows remote monitoring
  • Two way handsfree communication
  • Programmable VOX (mic/speaker) switching speed
  • Applications: Door or gate communication, business delivery entrances
  • Applications: Use with a Viking C-200 or C-250 to control an E-10A on a single line
  • Applications: Use with a Viking C-2000B to control 1 to 4 E-10A and door/gate control on a single phone line
  • Applications: Provide unique front and back door chimes and paging when used with a Viking SLP-1, SLP-4 and C-2000B
  • Applications: Residential, commercial and industrial door security
  • Applications: Use with a Viking K-1900-5 or K-1900-30 for automatic speed dialing on telephone lines or analog PABX/KSU station ports
  • Applications: Use on any analog PABX station port with programmable ringdown capability

Viking Electronics E-10A-EWP Specifications

Telephone line powered (18 VDC/20mA minimum)
-34deg. C to 65deg. C (-30deg. F to 150deg. F) with up to 100% condensing humidity
Speaker Volume
Approximately 70db maximum at 1m
Ring Voltage
25V AC RMS minimum
CPC Disconnect Time
300ms minimum
(2) gel-filled butt connectors
Overall: 5 x 5 x 2.25" / 12.7 x 12.7 x 5.71cm
