Viking Anti-Feedback Paging Interface

Viking Anti-Feedback Paging Interface

SKU: VIKFBI1A
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Viking Anti-Feedback Paging Interface Specifications

  • Applications

    Eliminate Paging Feedback in:
    Warehouses
    Factories
    Offices
    Retail Stores
    Hotels
    Airports
    Stadiums
    School Gymnasiums
    Pools
    Casinos
    Bingo Halls
    Dining Establishments
    Other large noisy areas

  • Power

    120V AC/13.8V AC 1.25A, UL listed adapter provided

  • Environmental

    0deg.C to 32deg.C (32deg.F to 90deg.F) with 5% to 95% noncondensing humidity

  • Sampling Rate

    80K/40K (equivalent)

  • Maximum Page Length

    16/32 seconds (DIP switch selectable)

  • Output Impedance

    600 ohm

  • Maximum Audio Output

    2V RMS (driving a 600 ohm load)

  • Talk Battery

    24V DC (Trunk mode only)

  • Connections

    13 cage clamp screw terminals

  • Dimensions

    5.25 x 3.5 x 1.75" / 13.33 x 8.89 x 4.44cm

About Viking Anti-Feedback Paging Interface

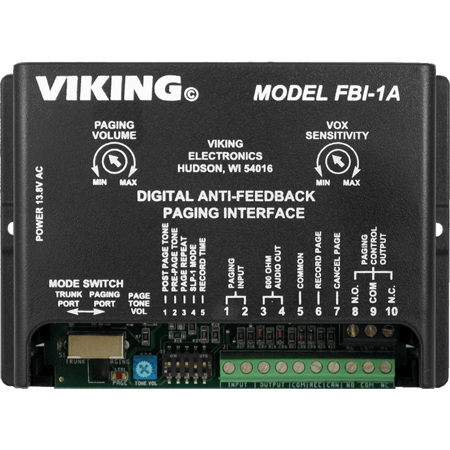

Even the best designed paging systems can experience feedback. Now you can eliminate annoying feedback over your paging speakers with Viking FBI-1A Anti-Feedback Paging Interface. The FBI-1A utilizes state of the art digital recording technology to record the "live" page from a phone system's paging port output or unused trunk port. The FBI-1A then immediately plays back the recorded page once or twice (selectable) over the paging system.

Pages of up to 32 seconds can be stored and the FBI-1A automatically adjusts to the page length for faster processing. In addition, the FBI-1A can be programmed to provide pre-page and post-page alert tones.

Viking Anti-Feedback Paging Interface Features

  • High quality (80K/40K) digital message storage
  • High output - 2V RMS into 600 ohms
  • 16 or 32 second record time (DIP switch selectable)
  • Compatible with Paging ports or Trunk ports
  • Activate recording from VOX detection, contact closure or loop detect (Trunk mode only)
  • VOX sensitivity adjustment
  • Cancel page feature
  • Selectable page repeat
  • Selectable pre-page alert tone
  • Selectable post-page alert tone
  • Adjustable alert tone volume
  • N.O./N.C. relay contacts control paging system
  • Record/Playback LED indicator
  • Compatible with virtually all paging and telephone systems
