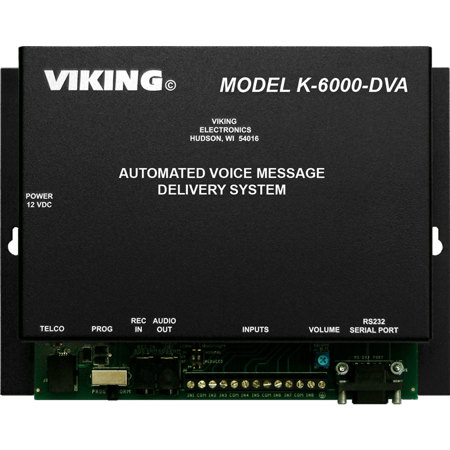

Viking K-6000-DVA Automated Voice Message Delivery System

SKU: VIKK6000DVA

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Viking K-6000-DVA Specifications

  • Applications

    Schools
    Churches
    Businesses
    Government / community
    Civic organizations
    Apartment/office information and notification, ie: snow removal, carpet cleaning, etc.

  • Power

    120V AC/12V DC 500 mA, UL listed adapter provided

  • Environmental

    0deg.C to 32deg.C (32deg.F to 90deg.F) with 5% to 95% noncondensing humidity

  • Talk Battery

    12V DC

  • Touch Tone Dialing

    120 ms on/off, 50 ms on/off

  • CPC Detection Time

    320 ms minimum

  • Message Record Time

    8 minutes

  • Sampling Rate

    64 K (equivalent)

  • Input Detection Time

    80 ms

  • Connections

    (1) RJ11 jack for telco connection, (2) 3.5mm jacks for 600-ohm audio output and record in, (1) 9 pin RS-232 for PC connection, (1) 12 position screw terminal block for inputs

  • Dimensions

    211 x 160 x 46 mm / 8.30 x 6.29 x 1.81"

About Viking K-6000-DVA

Viking K-6000-DVA can automatically notify up to 1000 people of an event or an event cancellation, school or business closing or delayed opening. The K-6000-DVA is designed to connect to a standard analog CO line, PABX station or VoIP ATA or FXS port. To activate the unit, an authorized official calls the K-6000-DVA, dials a 6 digit access code, selects a pre-recorded message or records a live message up to 1 minute, then activates the unit via a touch tone command to automatically call all the phone numbers in a pre-programmed group. Up to 6 groups of phone numbers can be pre-programmed into the unit. Alternatively, activating an "All Call" command calls all pre-programmed numbers.

The K-6000-DVA can also be activated (or cancelled) by up to 8 external momentary push buttons (not included). In the event any called number is busy or doesn't answer, the unit will retry the unanswered numbers several times (programmable 1-9) after all other numbers are called. The maximum number of rings before calling the next number is programmable 1-8 rings (6-48 seconds). The unit waits 2 seconds for touch tones after the message is delivered, if a is detected, the message is replayed once. For critical applications, the K-6000-DVA can be programmed to require a positive confirmation - the called party must send a pre-determined touch tone to confirm that the message was received. The K-6000-DVA can be programmed from your PC's USB or RS-232 port.

Viking K-6000-DVA Features

  • Non-volatile memory (no batteries required)
  • Stores up to 1000 14-digit numbers
  • Up to 6 groups
  • 8 minutes of total record time total
  • Eight normally open inputs for push buttons to activate groups 1-6, "All Call" or "Stop"
  • Programmable ring delay for remote programming
  • Call progress detection determines when answered
  • Programmable ringback limit for call progress (1-8)
  • Programmable "retry" limit (1-9) for calls that are busy or don't answer
  • Remote security and access codes
  • Local or remote programming and recording
  • Program from your PC's USB or RS-232 port (RS-232 to USB adapter included)
  • Up to 8 K-6000-DVAs can be connected to 1 PC
  • Master/Slave mode for multiple levels of K-6000-DVAs
  • Compatible with the RC-2A and RC-3 remote DTMF controllers
  • Line level input for loading pre-recorded messages into the unit
  • Activity reports available

Key Features

  • Non-volatile memory (no batteries required)
  • Stores up to 1000 14-digit numbers
  • 8 minutes of total record time total
  • Programmable ring delay for remote programming
  • Call progress detection determines when answered
  • Programmable ringback limit for call progress (1-8)
