Viking LM-24S Specifications

  • Applications

    Ideal for areas where personal attention must be given to every call
    Eliminates the additional cost of adding a PABX console or key system
    Allows for full utilization of all call pickup features
    Monitors the status of lines or stations

  • Power

    120V AC/13.8V AC 1.25A UL listed adapter provided

  • Connections

    (1) RJ21X connector (1) RJ11 jack

  • Maximum Display Runs

    (1) display: 244m (500 ft), (2) display: 122m (400 ft), (3) displays: 61m (200 ft)

  • Dimensions

    133 x 130 x 38mm (5.23 x 5.1 x 1.5")

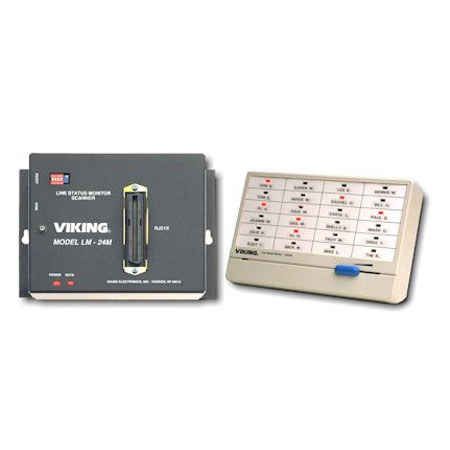

About Viking LM-24S

The Viking LM-24S System provides a visual status of up to 24 lines or stations. If a line or station is in use, the corresponding LED will light steady, a ringing line or station will show a flashing LED.

Even if a ringing phone is out of hearing range, a common audible tone calls the operator's attention to the visible display. The tone is adjustable for convenient operation.

The LM-24S Line Status Monitor System is designed for professional and efficient call processing at department answering positions, message centers and back-up attendant stations. Each LM-24S Line Status Monitor System includes one LM-24D Display and one LM-24M Scanner.

Viking LM-24S Features

  • Visual status for up to 24 analog lines or stations (idle, in-use, ringing)
  • Programmable ring indication on a per-line basis
  • Adjustable display viewing angle for desk or wall mounting
  • Displays require only a single pair of wires
  • Powers up to (3) LM-24D or LM-12W displays
  • User printable extension identification cards
  • Adjustable audio volume
  • Quick installation
  • Includes both the display and the scanner

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Visual status for up to 24 analog lines or stations (idle, in-use, ringing)
  • Programmable ring indication on a per-line basis
  • Adjustable display viewing angle for desk or wall mounting
  • Displays require only a single pair of wires
  • Powers up to (3) LM-24D or LM-12W displays
  • User printable extension identification cards

What's in the box:

  • Viking LM-24D Display
  • LM-24M Scanner
  • Viking 1 Year Limited Warranty
