Vinten 3370-3 Elevation Unit with 46 cm/18" Unit Stroke for HDT-1 Tripod

SKU: VO33703 MFR: 33703

List Price: $3,635.00

Free Shipping

See all shipping options

Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability. learn more

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

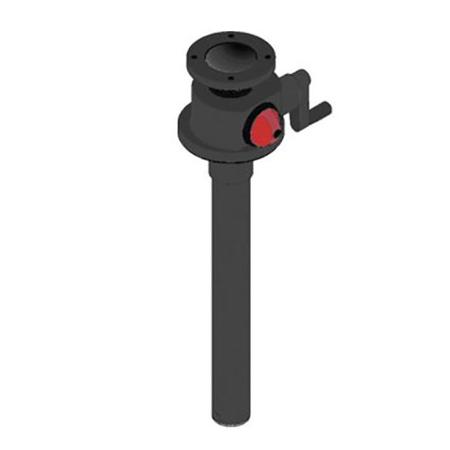

Vinten 3370-3: Picture 1 regular $3,272.00

About Vinten 3370-3

This Vinten elevation unit can be used with HDT-1 tripod. The elevation unit gives a unit stroke of 46 cm / 18 " for quick height range adjustment.

Vinten 3370-3 Features

  • The elevation unit attaches directly to the single-stage tripod and has a height range of 45.8 cm (18.0"). It will support a maximum payload of 113 kg (250 lb).
  • Elevation is achieved by a geared handle and an on-shot clamp is provided.
  • The elevation unit should not be fitted to the two-stage tripod, as stability is reduced when the elevation unit is fully extended.
  • The pan and tilt head is attached to the elevation unit with a four-bolt fixing as standard, with provision for Mitchell, Quickfix and 100/150 mm bowl adaptors as options.

Vinten 3370-3 Specifications

Elevation Unit Stroke
46 cm / 18"
Load capacity with HDT-1 tripod
113 kg (250 lbs)
On-shot stroke
45.8 cm (18.0 in.)
Height with tripod/floor spreader (min)
71.5 cm (28.1 in.)
Height with tripod/floor spreader (max)
181.2 cm (71.3 in.)
5 kg (11 lbs)
Vinten 1 year limited warranty
