Vinten

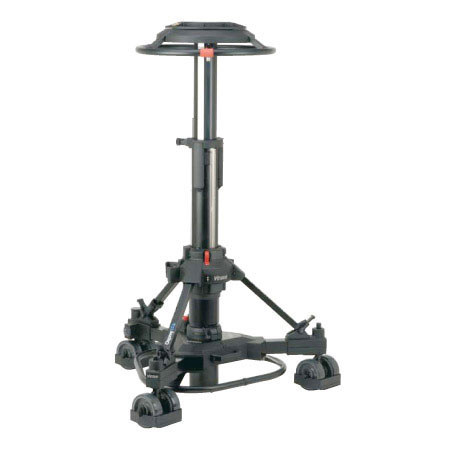

Vinten Elite 2-Stage Studio Version Pedestal with 125mm Wheels and Cable Guards, Maximum Payload 165 lbs, Black

SKU: VO35743C MFR: 35743C
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$25,970.00 List Price

Our Price

$23,373.00 $908 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About this item

The Elite Studio version is the most versatile of the Osprey range, designed to support the latest range of digital, portable and full facility cameras for studio use. The Osprey Elite pedestal comprises a central two-stage telescopic column and a steerable, folding skid assembly.

The two-stage column offers an on-shot movement of 77cm (30 in.) with full crab and steer movement controlled from a central detachable steering ring. The Elite has an exceptional combination of lightness and structural integrity while still allowing the column and dolly to be dismantled and folded for easy transportation.

What's Included With This Item

  • Vinten Osprey Elite Studio Pedestal
  • Column
  • Studio Skid
  • Kick Bar
  • Trim Weight
  • Vinten 1 Year Warranty
  • (*can be extended to
  • Full 2 years labor and parts warranty, after product registration)

Key Features

  • Lightweight construction - 46 kg (101 lbs)
  • Low pressure counterbalance system
  • 75 kg capacity
  • Easily transportable

Technical Specs

Payload 75 kg (165 lbs)
Column Weight 24.5 kg (54 lbs)
Skid Weight 21 kg (46.2 lbs)
Trim Weights 3 kg (6.6 lbs)
Total Pedestal Weight 48.5 kg (106.8 lbs)
Minimum Height 66 cm (26")
Maximum Height 143 cm (56.3")
On-Shot Stroke 77 cm (30")
Skid Leg Radius 48 cm (19")
Doorway Tracking Width 97 cm (38")
Transit Doorway Width 86 cm (34")
Narrow Doorway Tracking Width 70 cm (27.5")
Wheel Diameter 12.5 cm (5")
Steering Ring Diameter 53.5 cm (21")
Max Working Pressure 13.8 bar (200 psi)
Relief Valve Pressure 16.2 bar (235 psi)
Warranty Vinten 1 Year Warranty
(*can be extended to - Full 2 years labor and parts warranty, after product registration)
